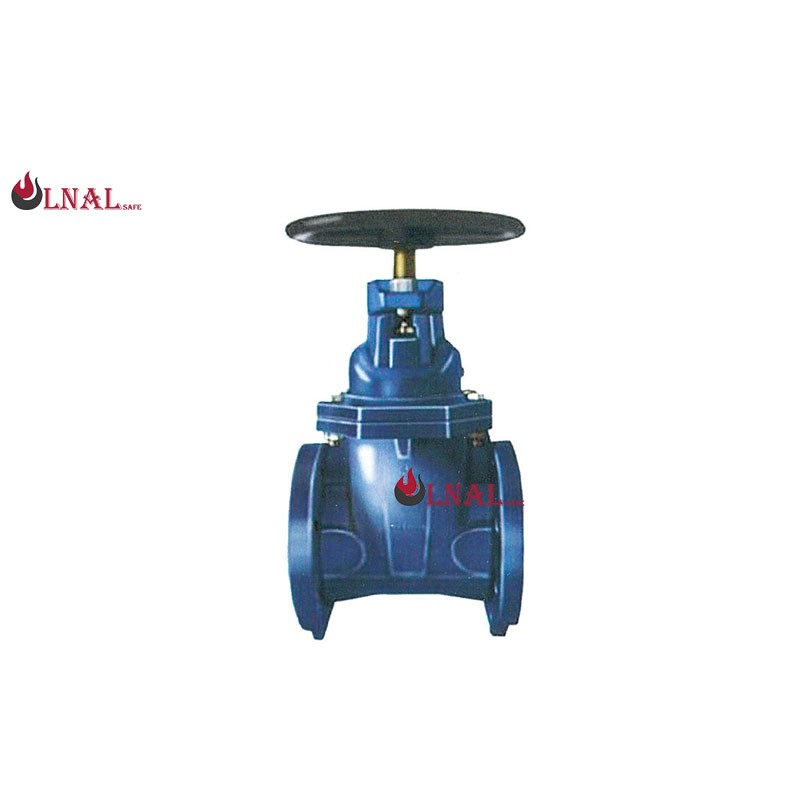

Resilient Seat Gate Valve, Ductile Iron, Flanged End, Handwheel Operation, for Water Systems

Resilient Seat Gate Valve, Ductile Iron, Flanged End, Handwheel Operation, for Water Systems

Our resilient seat gate valve is engineered for exceptional sealing performance in water supply and distribution systems. Crafted from high-grade ductile iron (QT450) and featuring an EPDM resilient seat, this valve ensures bubble-tight shut-off and reliable operation under varying pressures. With a flanged end connection for easy installation and a handwheel for manual operation, it is ideal for municipal, industrial, and irrigation applications. Compliant with DIN standards and designed for durability, this valve offers long service life and minimal maintenance.

Product Feature

Resilient Seat Design: EPDM seat ensures bubble-tight sealing and excellent resistance to wear and corrosion.
Ductile Iron Construction: QT450 material provides high strength, impact resistance, and durability.
Flanged End Connection: Facilitates easy installation and secure pipeline integration.
Handwheel Operation: Manual operation for precise flow control, suitable for applications without external power.
Compliant with DIN Standards: Designed to meet international quality and performance requirements.
Wide Size Range: Available in sizes from DN40 to DN1200 to accommodate various pipeline needs.

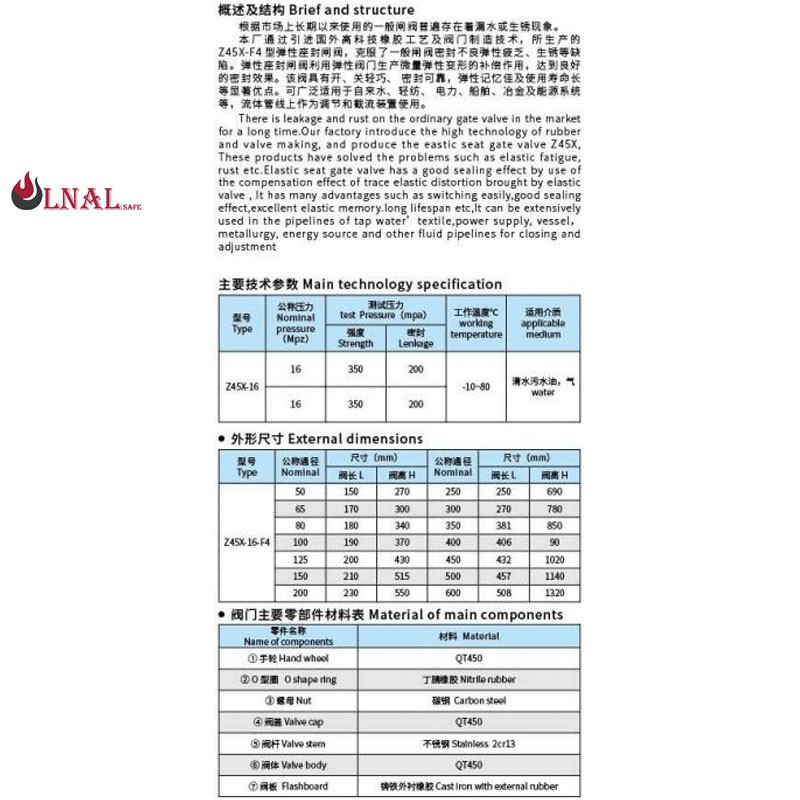

Specifications

Attribute	Specification
Size Range	DN40 - DN1200
Pressure Rating	PN10, PN16 (1.0MPa, 1.6MPa)
Design Standard	DIN
Connection Type	Flange Ends
Body Material	Ductile Iron (QT450)
Seat Material	EPDM (Resilient Seat)
Operation	Manual Handwheel
Media	Water
Temperature Range	Normal to Medium Temperature (T<80°C)
Certifications	ISO9001, ISO14001, ISO45001

Advantages

Advantage	Description
Bubble-Tight Sealing	Resilient EPDM seat ensures zero leakage and reliable performance.
Durable Construction	Ductile iron body offers high corrosion and impact resistance.
Easy Installation	Flange ends simplify fitting and ensure secure pipeline connections.
Smooth Operation	Handwheel design allows for easy and precise flow control.
Low Maintenance	Robust design and resilient seat reduce wear and extend service life.
Versatile Application	Suitable for water supply, irrigation, and industrial systems.
