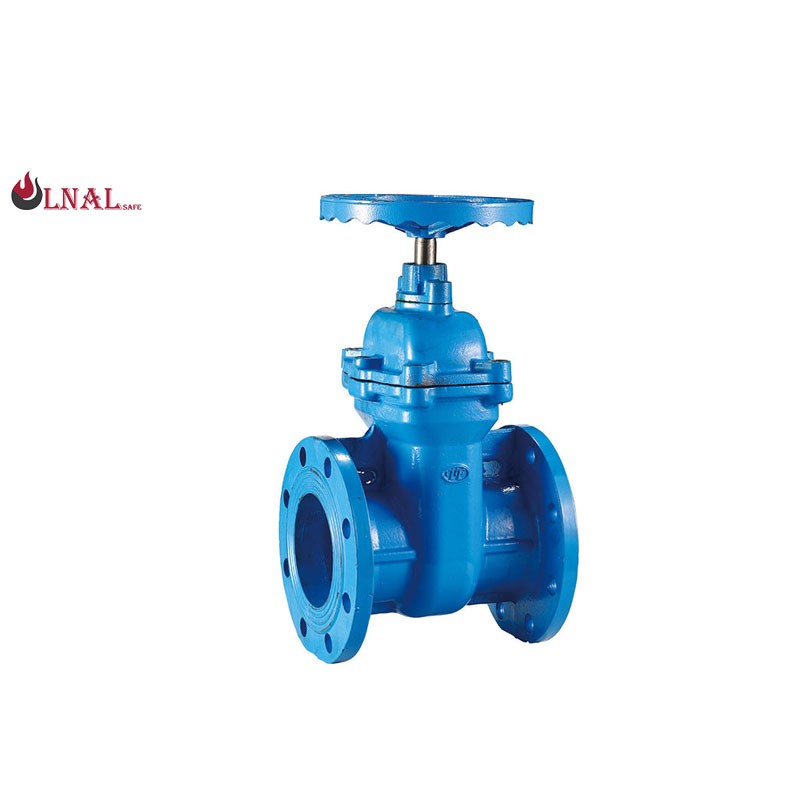

Flanged Gate Valves, Nodular Cast Iron, Non-Rising Stem, Soft Sealing, Elastic Seated Design

Flanged Gate Valves, Nodular Cast Iron, Non-Rising Stem, Soft Sealing, Elastic Seated Design

Our flanged gate valves are engineered for superior performance in industrial and municipal water systems. Constructed from high-quality nodular cast iron, these valves feature a non-rising stem design ideal for spaces with limited vertical clearance. The elastic seated soft sealing ensures bubble-tight shut-off and reliable operation under varying pressures. Compliant with international standards including ANSI, API, and ISO, these valves are designed for durability and ease of maintenance. Perfect for water, oil, and general industrial applications, they offer excellent corrosion resistance and long service life.

Product Feature

Nodular Cast Iron Construction: Offers exceptional strength, durability, and corrosion resistance.
Non-Rising Stem Design: Saves vertical space and is ideal for installations with limited clearance.
Elastic Seated Soft Sealing: Ensures bubble-tight shut-off and reliable performance under pressure fluctuations.
Flange Connection: Facilitates easy installation and secure pipeline integration.
Compliant with International Standards: Meets ANSI, API, and ISO requirements for quality and performance.
Wide Size Range: Available in sizes from DN40 to DN1200 to suit various industrial needs.

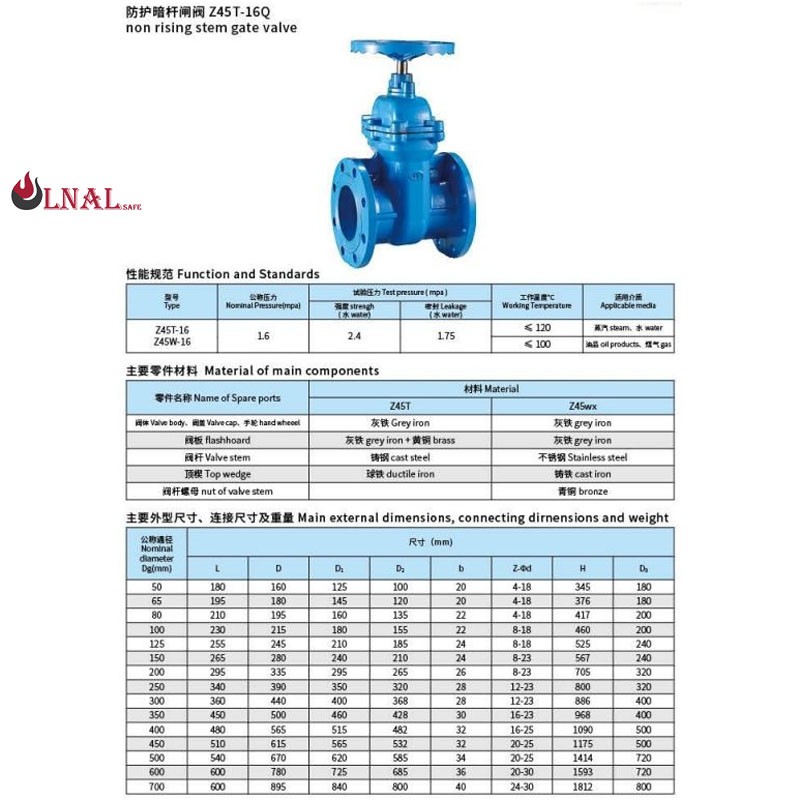

Specifications

Attribute	Specification
Size Range	DN40 - DN1200
Pressure Rating	PN10/16, Class150/300
Design Standard	ANSI, API, ISO
Connection Type	Flange Ends
Body Material	Nodular Cast Iron
Stem Design	Non-Rising Stem
Seat Material	Soft Sealing (Elastic Seated)
Operation	Manual Handwheel
Media	Water, Oil, General Industrial Fluids
Temperature Range	Normal to High Temperature
Certifications	ISO9001, ISO14001, ISO45001

Advantages

Advantage	Description
Space-Saving Design	Non-rising stem is ideal for installations with limited vertical space.
Bubble-Tight Sealing	Elastic seated soft seal ensures zero leakage and reliable performance.
Durable Construction	Nodular cast iron body offers excellent corrosion and impact resistance.
Easy Installation	Flange ends simplify fitting and ensure secure pipeline connections.
Low Maintenance	Robust design and soft sealing reduce the need for frequent upkeep.
Versatile Application	Suitable for water supply, oil pipelines, and industrial systems.

nodular cast iron gate valve, non-rising stem gate valve, soft sealing gate valve, elastic seated gate valve, water gate valve, PN16 flanged gate valve, DN100 gate valve
