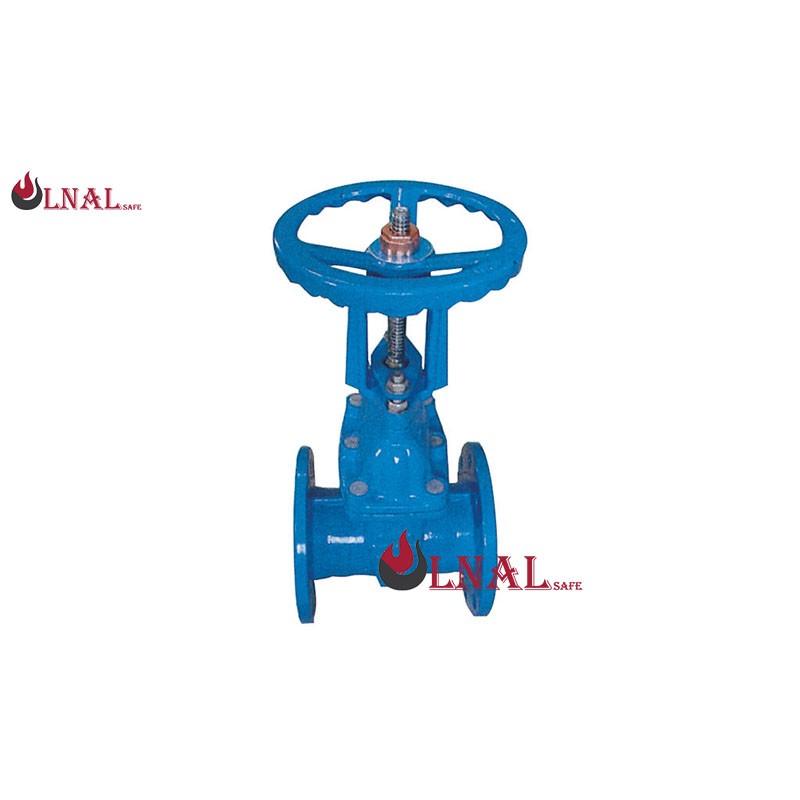

Rising Stem Gate Valve, Ductile Iron, Flange End, Soft Sealed, for Oil, Steam, and Water Applications

Rising Stem Gate Valve, Ductile Iron, Flange End, Soft Sealed, for Oil, Steam, and Water Applications

Our rising stem gate valve is engineered for precise flow control in demanding industrial environments, including petrochemical, power generation, and oil and gas pipelines. Featuring a durable ductile iron body and a soft seal design, this valve ensures bubble-tight shut-off and reliable performance under high-pressure conditions. The rising stem (OS&Y) design provides clear visual indication of the valve position, enhancing operational safety. Compliant with ANSI, API, and ISO standards, this valve is available in sizes from 2 inches to 6 inches, offering exceptional durability and ease of maintenance for critical applications.

Product Feature

Rising Stem Design (OS&Y): Provides clear visual indication of valve position for enhanced safety and control.
Ductile Iron Construction: Offers superior strength, impact resistance, and longevity.
Soft Seal Design: Ensures bubble-tight sealing and reliable performance under high-pressure conditions.
Flange End Connection: Facilitates easy installation and secure pipeline integration.
Compliant with International Standards: Meets ANSI, API, and ISO requirements for quality and performance.
Wide Size Range: Available in sizes from 2 inches to 6 inches to suit various industrial needs.

Specifications

Attribute	Specification
Size Range	2" - 6" (DN50 - DN150)
Pressure Rating	Class150, Class300, PN10/16
Design Standard	ANSI, API, ISO
Connection Type	Flange Ends
Body Material	Ductile Iron
Stem Type	Rising Stem (OS&Y)
Seat Material	Soft Seal (Resilient Material)
Operation	Manual Handwheel
Media	Oil, Steam, Water
Temperature Range	High Temperature (Specific range based on seat material)
Certifications	ISO9001, ISO14001, ISO45001

Advantages

Advantage	Description
Clear Visual Indicator	Rising stem design allows easy identification of valve open/close status.
Bubble-Tight Sealing	Soft seal ensures zero leakage and reliable performance under high pressure.
Durable Construction	Ductile iron body offers excellent corrosion and impact resistance.
Easy Operation	Handwheel design enables smooth and precise flow control.
Low Maintenance	Robust design and resilient seat reduce the need for frequent upkeep.
Versatile Application	Suitable for oil, steam, water, and industrial pipelines.
