How to use a multimeter smart Clamp Current Meter

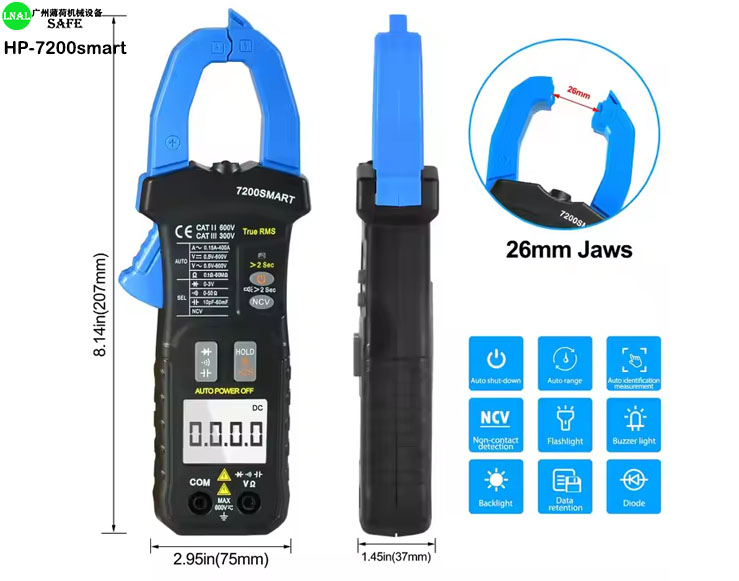

The HP-7200smart Clamp Current Meter is a versatile tool designed for measuring various electrical parameters, including AC/DC voltage, AC current, resistance, and capacitance. To utilize this device effectively, follow these steps:

1. Powering On the Device

• Insert Batteries: Ensure the meter has fresh batteries installed.

• Power On: Press the power button to activate the device.

2. Selecting the Measurement Mode

• Function Dial: Rotate the function selector dial to choose the desired measurement parameter:

• V: For measuring voltage (AC/DC).

• A: For measuring current (AC).

• Ω: For measuring resistance.

• Capacitance Symbol (F): For measuring capacitance.

3. Measuring Voltage (AC/DC)

• Probe Connection:

• Insert the black test lead into the COM terminal.

• Insert the red test lead into the VΩ terminal.

• Measurement:

• Set the dial to the appropriate voltage setting (AC or DC).

• Contact the test leads to the circuit points where voltage measurement is desired.

• Read the voltage value displayed on the screen.

4. Measuring AC Current

• Clamp Preparation:

• Set the dial to the AC current (A~) position.

• Press the trigger to open the clamp jaws.

• Measurement:

• Enclose the conductor carrying the current to be measured within the clamp jaws. Ensure only one conductor is inside the clamp for accurate measurement.

• Release the trigger to close the jaws.

• Read the current value displayed on the screen.

5. Measuring Resistance

• Probe Connection:

• Insert the black test lead into the COM terminal.

• Insert the red test lead into the VΩ terminal.

• Measurement:

• Set the dial to the resistance (Ω) setting.

• Ensure the circuit is de-energized before measuring.

• Place the test leads across the component or section of the circuit to measure resistance.

• Read the resistance value displayed on the screen.

6. Measuring Capacitance

• Probe Connection:

• Insert the black test lead into the COM terminal.

• Insert the red test lead into the VΩ terminal.

• Measurement:

• Set the dial to the capacitance (F) setting.

• Discharge the capacitor fully before measurement to avoid damage.

• Connect the test leads to the capacitor terminals.

• Read the capacitance value displayed on the screen.

7. Utilizing Additional Features

• Data Hold Function: Press the "HOLD" button to freeze the current reading on the display. Press again to release.

• Backlight: Activate the backlight by pressing the backlight button, useful in low-light conditions.

• Non-Contact Voltage Detection (NCV):

• Set the dial to the NCV setting.

• Bring the sensor near a conductor to detect the presence of voltage without direct contact.

• The device will alert you if voltage is detected.

8. Safety Precautions

• Always ensure the device is set to the correct measurement mode to prevent damage.

• Do not exceed the maximum input limits specified for each measurement type.

• Use caution when measuring live circuits to avoid electric shock.

For a visual demonstration of the HP-7200smart Clamp Current Meter's features and usage, you may contact us:
