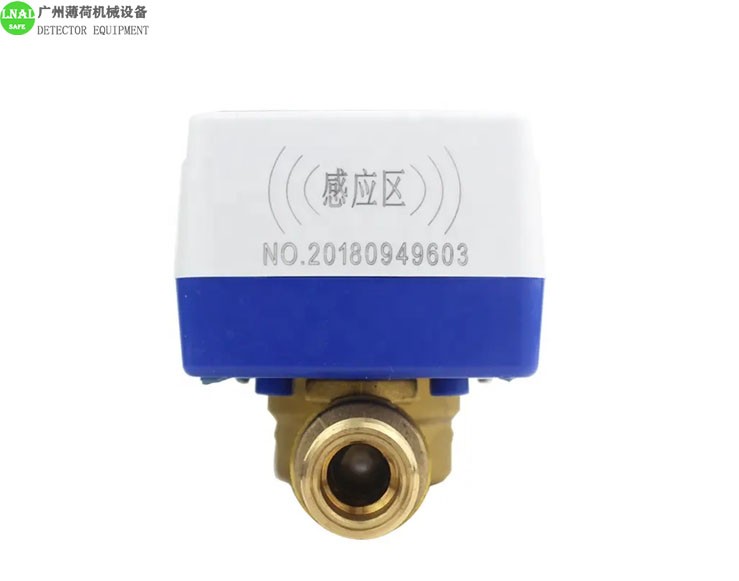

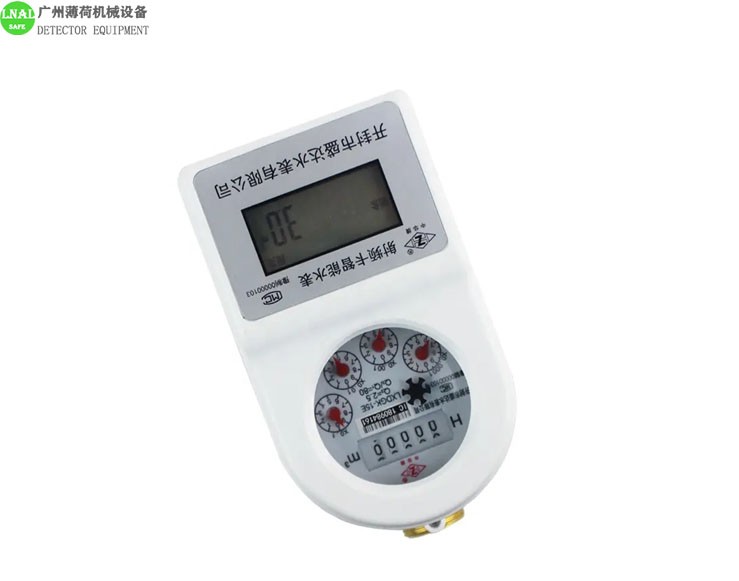

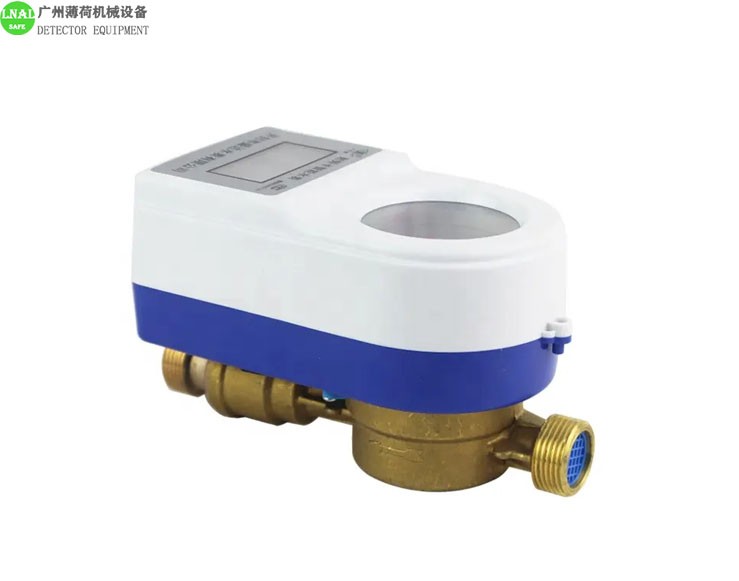

Single jet smart ic card pre paid water meter
Warranty	1 year
Type	Multi-jet meters, Prepaid water meters
Place of Origin	Henan, China
Warranty	1 year
Customized support	OEM
Brand Name	LNAL
Model Number	LXSK-15E
Product Name	Single jet smart ic card pre paid water meter
Keyword	smart prepaid ic card water meter
Ambient temperature	5-55℃
Water pressure	0.03Mpa-1Mpa
Water temperature	cold 1-40℃, hot 0.1-90℃
Ambient humidity	(0-93)%RH
Max operating current	4mA
Voltage	3.0-3.6V DC
Data transfer rate	1200bps
Material	Brass

IC card smart prepaid digital water meter product features:

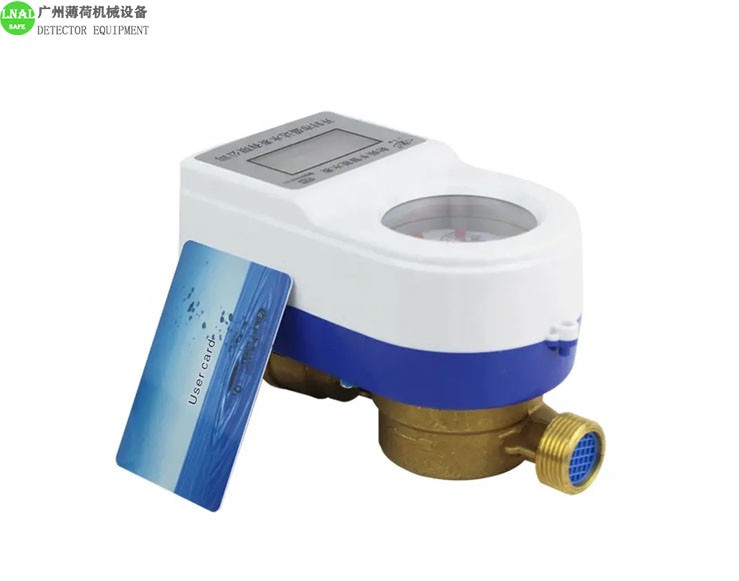

Smart IC card water meter:
1. Using non-contact IC card technology, wireless data transmission is used to solve the problems of waterproof, moisture-proof and anti-attack.
2, micro-power technology: Usually power consumption is less than 0.5μA, so that the battery life greatly increased, to ensure the use of more than 6 years.
3, electric suspension ball valve technology: anti-locking, non-fouling characteristics, can achieve low pressure loss, wear, power consumption, anti-rust, anti-blocking effect.
4, automatic valve discharge, anti-blocking, anti-rust technology: valve timing automatically switch action, the effective use of pipeline pressure caused by the instantaneous impulse of water, to achieve automatic valve discharge, to prevent valve rust die, fouling and other phenome
5, full seal design: all lines are all sealed with epoxy resin, good sealing.
6, anti-external, magnetic attack technology: When the external power, magnetic attack, the meter will automatically close the valve.

Straight pipe length fore water meter is 10 times of DN, straight pipe length behind water meter is 5 times of DN.Flow direction should be the same as the arrow on the body directs.
Work power supply: The operating voltage of alternating current or direct current shall be in the range of -15% to 10% of the standard voltage and the frequency of AC frequency should be ± 2% of the standard frequency.
Card water meter should add following below requirements: work pressure: 3.0V~3.6V Static operating current: ≤5μA LCD display range: 00000.0~99999.9 Climate and mechanical environment grade B Electromagnetic environment class E1 level
