Ultrasonic flow meter

Accuracy(13)

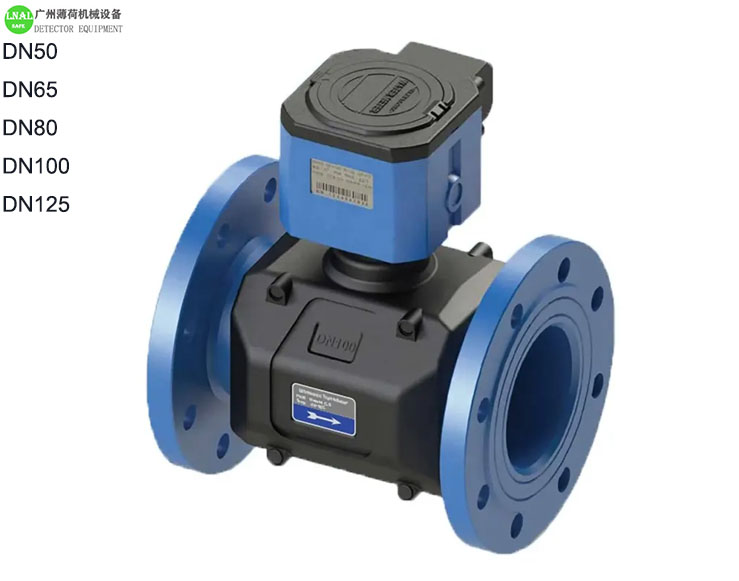

DN50
DN65
DN80
DN100
DN125

flow meter for water, magnetic water flow meter, magnetic water flow meter, ultrasonic water flow meter

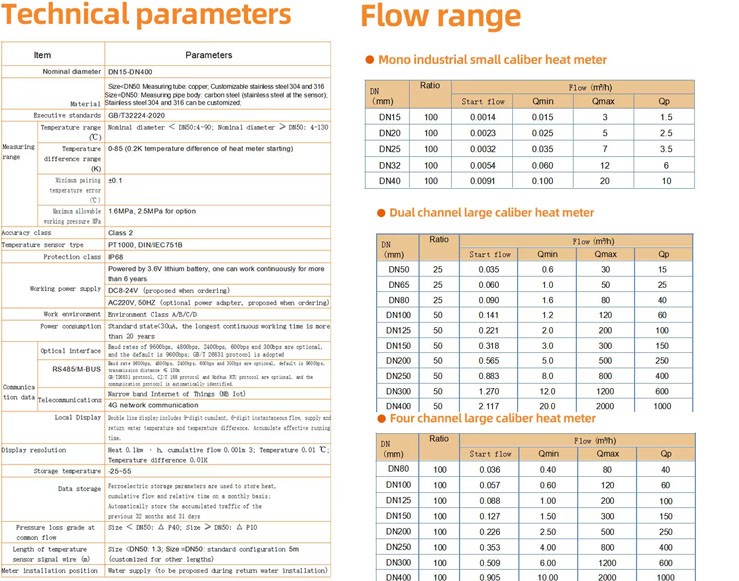

Product Features, Specifications, and Benefits

Category	Details
Product Name	Ultrasonic Flow Meter
Measurement Principle	Ultrasonic transit-time technology
Measurement Range	0.01 m³/h to 200 m³/h (based on pipe size)
Accuracy	±0.5%
Pipe Sizes	DN15, DN20, DN25, DN32, DN40, DN50
Communication Technology	Wireless M-Bus (EN 13757 compliant)
Power Source	Built-in lithium battery with a lifespan of ≥10 years
Working Pressure	≤1.6 MPa
Temperature Range	-10°C to 90°C (suitable for heating and water applications)

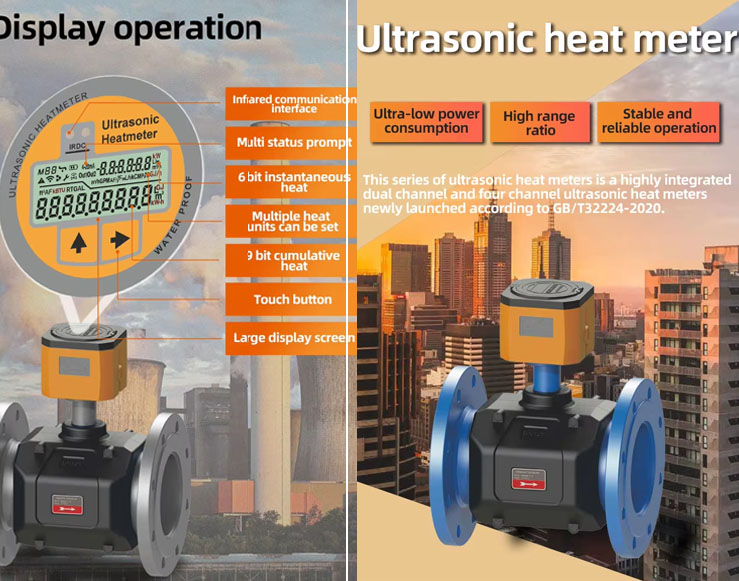

Display	Digital LCD showing flow rate, cumulative usage, and alerts
Ingress Protection	IP68 (waterproof and dustproof)
Material	High-strength ABS housing and corrosion-resistant components
Tamper Protection	Integrated anti-tampering mechanisms
Certifications	ISO 4064, CE, RoHS compliant
Applications	Residential heating systems, commercial flow monitoring, industrial processes, HVAC systems

Key Functions and Advantages

Functionality	Advantages
Ultrasonic Measurement Technology	Ensures accurate readings by eliminating moving parts, reducing wear and tear.
Wireless M-Bus Communication	Enables remote data collection and integration into smart systems for real-time monitoring.
High Accuracy	Provides reliable flow measurements with ±0.5% error margin, ensuring precise resource management.
Wide Operating Temperature Range	Functions in environments from -10°C to 90°C, making it suitable for both heating and cooling systems.
Durable and Waterproof Design	IP68-rated enclosure protects against water and dust, ensuring durability in challenging conditions.
Long Battery Life	A lithium battery with over 10 years of operation minimizes maintenance costs and downtime.
Real-Time LCD Display	Displays flow rate, cumulative volume, and error alerts for efficient system management.
Tamper Detection	Alerts users to unauthorized interference, maintaining the integrity of data and system functionality.
Versatile Pipe Size Compatibility	Available in various sizes, making it suitable for diverse applications in residential and commercial settings.

Key Benefits for Users

Enhanced Accuracy and Reliability: Ultrasonic technology ensures precise flow measurements, reducing errors in billing and resource allocation.
Smart Monitoring with Wireless M-Bus: Remote data collection and monitoring improve efficiency and simplify management for property owners and utility providers.
Durable Construction for Harsh Environments: Built to withstand water immersion and dust, making it ideal for outdoor and industrial installations.
Low Maintenance Requirements: With no moving parts and a long-lasting battery, the meter is designed for extended use with minimal upkeep.
Versatile Applications: Suitable for residential heating systems, commercial HVAC systems, and industrial water flow monitoring.

Optimized Content Overview

Ultrasonic Flow Meter: Precision and Smart Connectivity for Heating and Water Systems

The ultrasonic flow meter is a state-of-the-art device designed to measure water and heating system flows with exceptional accuracy. Combining advanced ultrasonic technology with wireless M-Bus communication, it ensures seamless data collection, reliable performance, and a robust design suitable for various applications.

Accurate Flow Measurement with Ultrasonic Technology

This meter uses ultrasonic transit-time technology to measure flow rates. Unlike traditional mechanical meters, it has no moving parts, ensuring consistent accuracy (±0.5%) and reducing wear over time. The device supports a broad measurement range from 0.01 m³/h to 200 m³/h, making it versatile for different flow rates.

Remote Monitoring with Wireless M-Bus

Equipped with wireless M-Bus functionality, the meter allows real-time remote monitoring and data integration with smart systems. This feature is particularly beneficial for property managers, utility companies, and industrial users seeking centralized flow data for efficient resource management.

Designed for Heating and Cooling Applications

The meter is built to operate in temperatures from -10°C to 90°C, making it ideal for underfloor heating systems, HVAC systems, and hot water flow monitoring. Its IP68-rated housing protects against water and dust ingress, ensuring reliable performance in various environments.

Energy-Efficient and Low Maintenance

Powered by a lithium battery with a lifespan of 10+ years, the ultrasonic flow meter minimizes maintenance costs. Its lack of moving parts further reduces wear and tear, providing a durable, long-lasting solution for flow monitoring.

Sample Use Cases

Residential Heating Systems: Monitor hot water flow in underfloor heating systems to optimize energy usage and ensure accurate billing.
Commercial HVAC Systems: Use in office buildings, hotels, and shopping centers to manage heating and cooling flows efficiently.
Industrial Water Monitoring: Measure and track water flow in manufacturing and processing facilities for resource optimization.
Municipal Water Systems: Integrate into city water networks for real-time monitoring and leak detection.
Agricultural Irrigation: Use in irrigation systems to monitor water flow and ensure optimal distribution.

Final Thoughts

The ultrasonic flow meter is a smart, reliable, and efficient solution for accurate flow measurement in heating and water systems. With its advanced ultrasonic technology, wireless M-Bus connectivity, and robust construction, it is designed to meet the demands of residential, commercial, and industrial applications. Whether monitoring underfloor heating, HVAC systems, or water distribution networks, this device offers precision, durability, and low maintenance for long-term performance.
