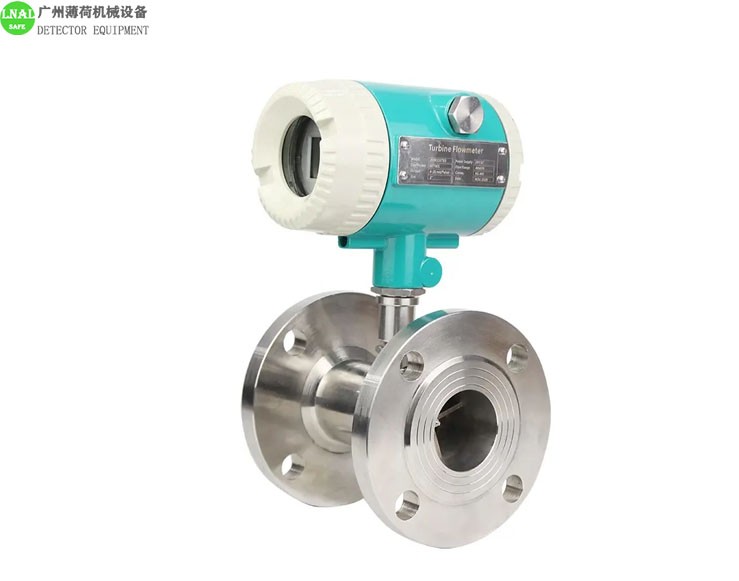

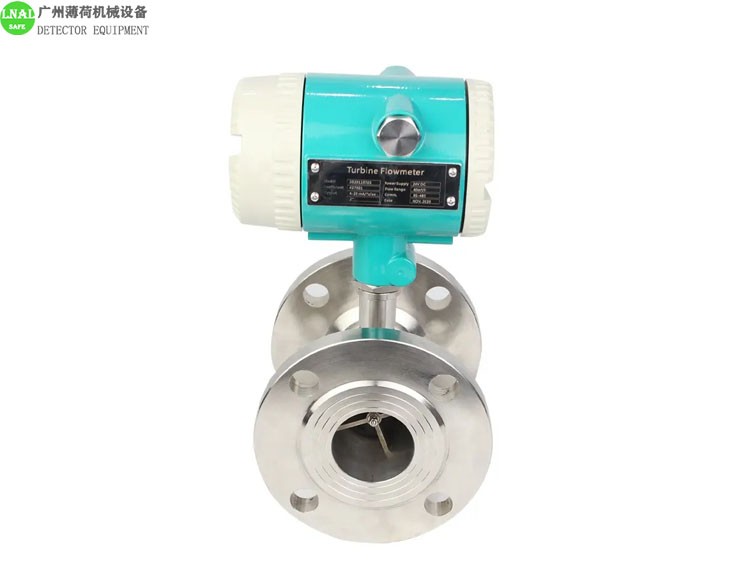

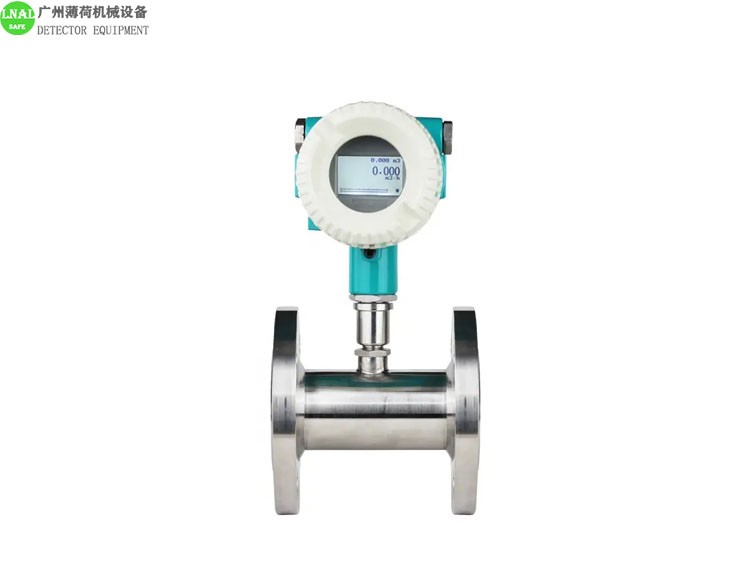

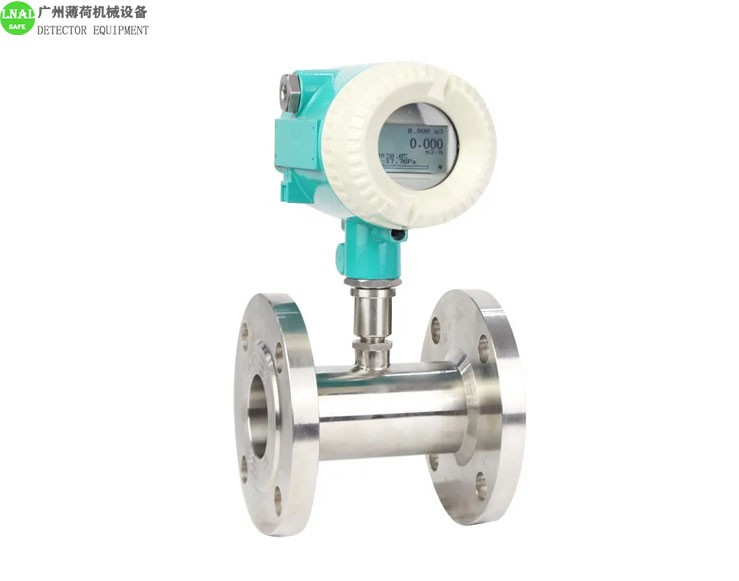

Hydraulic soybean oil flowmeter food grade flow meter for hydraulic oil

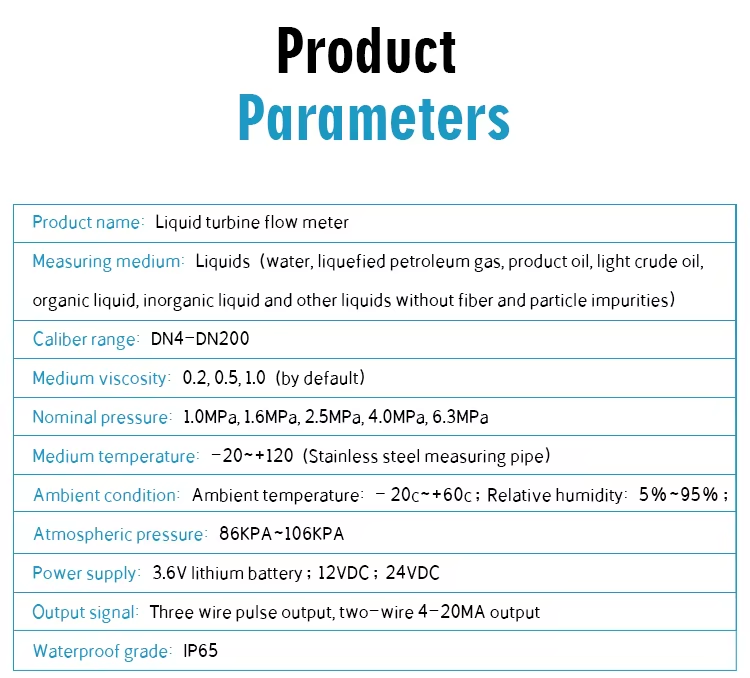

Type	Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
Material	SS304, SS316
Place of Origin	Henan, China
Warranty	1 year
Customized support	OEM
Brand Name	LNAL
Model Number	LWSY-50
Product Name	Hydraulic soybean oil flowmeter food grade flow meter
Accuracy	0.50%
Medium	water, oil, etc.
Working temperature	-20~60℃
Output	4-20mA
Communication	RS485/Modbus
Connection	Thread / flange / clamp
Material	SS304, SS316 or customize
OEM	Yes

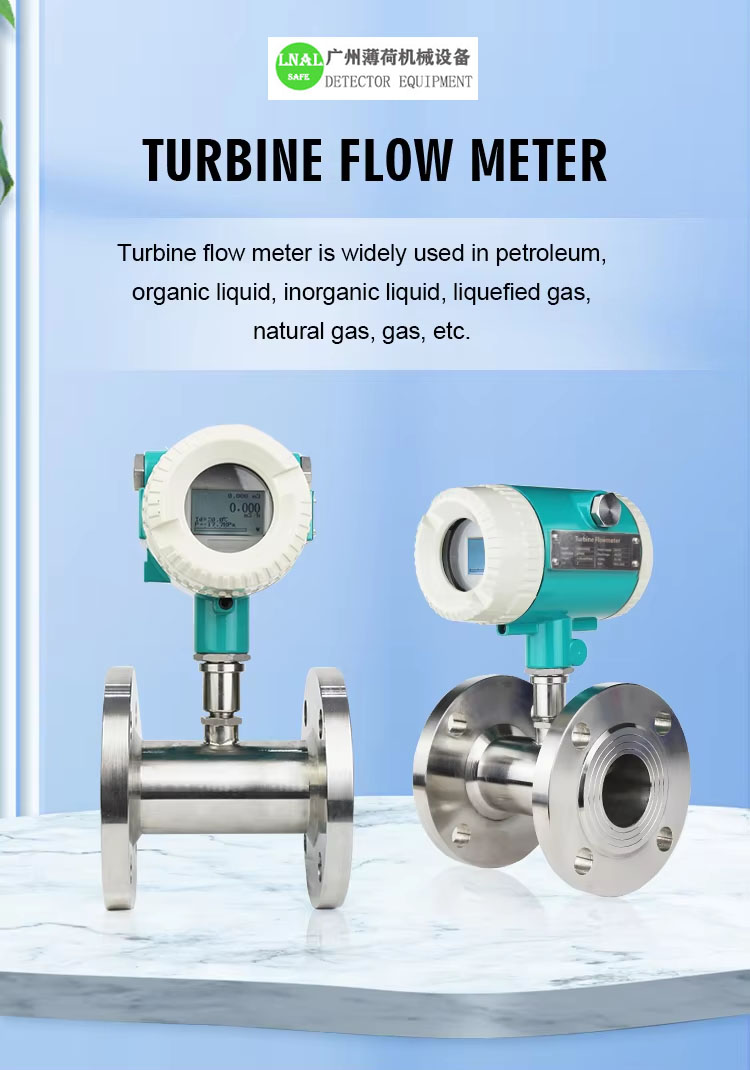

Turbine Flow Meter (Abbr. TUF) is a main type of Impeller Flowmeter also including the Anemoscope and Water meter. TUF is made up of Sensor and Conversion-Show. The Sensor reacts to the average velocity of fluid with multi-blades rotor so as to speculating the flow value and the accumulative flow value. The velocity (or circles) of rotor can be picked up by the way of mechanism, electromagnetic induction, photo electricity, before displaying and transmitting the records by reading device.

LWSY series Turbine Flowmeter draw the leading technology integrating with advanced design to produce the new generation of turbine flowmeter with the features of simple structure, light weight, high accuracy, good repeatability, flexible reaction, convenient installation/maintenance/application etc.. It is widely applied to measuring the liquid of which kinematic viscosity is under 5*10-6m2/s and have no impurity of fiber, grain etc., and no corrosive interaction with the stainless steel 1Cr18Ni9Ti,2Cr13,and A12O3, and hard alloy in seal pipes. The liquid of kinematic above 5*10-6m2/s can be measured after real liquid calibration of flowmeter. It can be used in value control, siren when excess, if co-ordination with special display instrument. So it is the ideal instrument of measuring flow value and saving energy.

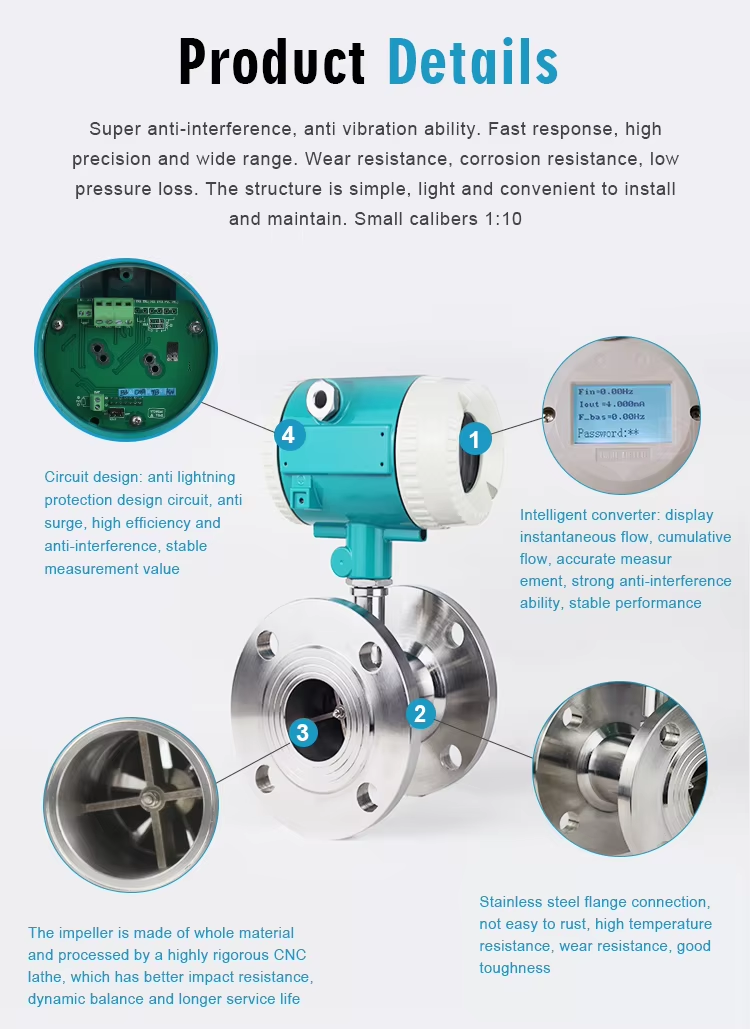

Turbine flow meter product features:

(1) High accuracy (regular accuracy±1%R, ±0.5%R, highest accuracy±0.2% R);

(2) Good repeatability (short-term one reaches 0.05%--0.2%), priority to be used in trade settlement for its extremely high accuracy in the regular calibration or on-line calibration.

(3) Pulse frequency signal output is applicable to totality calculation and computer connection with no zero drift and strong anti-interference capacity.

(4) High frequency (3-4kHz) can be achieved, and has high resolution.

(5) Wide range ratio: medium or large diameter may reach 1:20, and small diameters are 1:10.

(6) Compact and light weight structure, convenient installation and maintenance, extensive application ability.

(7) Application to high pressure measurement with its unnecessary opening hole to be made into high pressure instruments.

(8) Complete tailored version sensors can be designed to different kinds of types according to users special needs. For instance, low temperature type, high pressure type, sanitary type, etc.

(9) Insertion type can be made, that is applicable to large normal diameters measurement for its little pressure loss, low price, unnecessary stopping flow to take out it, and convenient installation and maintenance.
