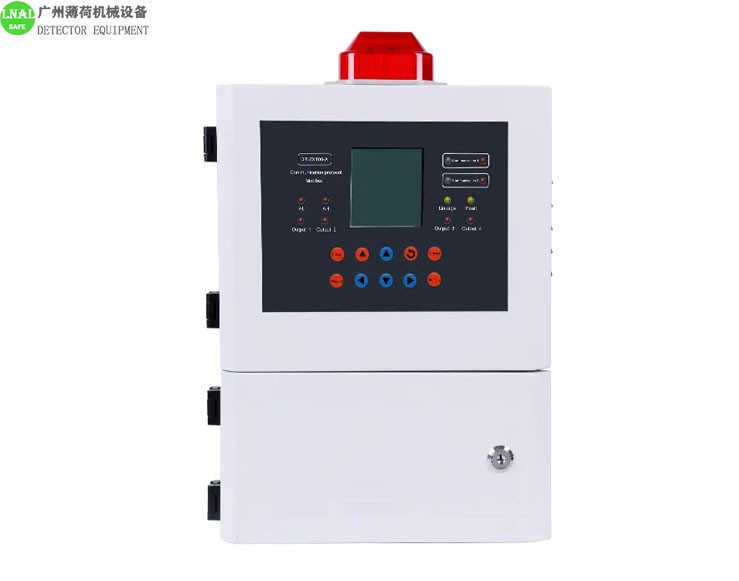

ZX100-A Gas Control Panel 99 Channel Combustible Toxic Gas Controller with Rs485 Signal Output
Type	GAS DETECTOR
Customized support	OEM, ODM, OBM
Place of Origin	Shandong, China
Warranty	1 year
Brand Name	lnal
Model Number	ZX100-A
output signal	RS485
Working temperature	-20~50℃
Using life	2-3 years
Working humidity	0-95%RH
Power supply	220V(195-235VAC/50-60HZ)
Weight	6KG
Display	LED
Alarm Mode	Acousto-optic Alarm
Installation	Wall mounted

Packaging and delivery
Selling Units:	Selling Units:
Single package size:	40X30X30 cm
Single gross weight:	1.000 kg
	5.000 kg

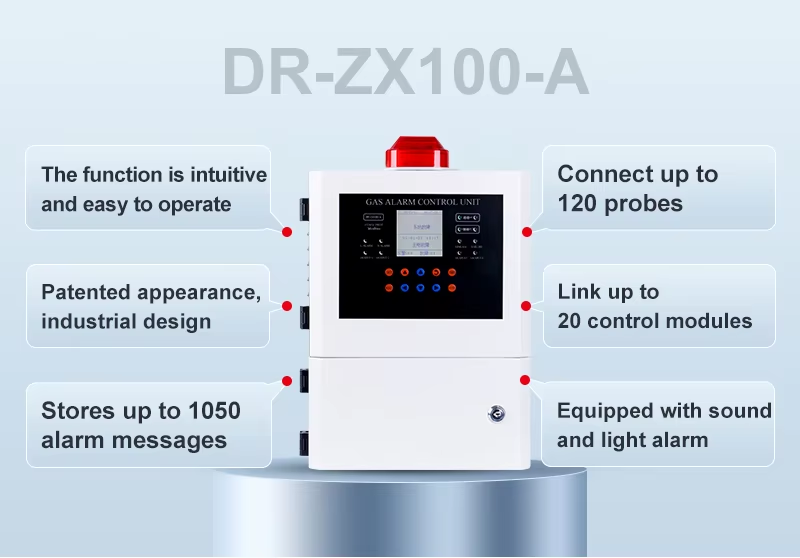

Industrial Gas Control Panel DR-ZX100-A Affordable and Compact, it supports connections for up to 120 probes and 1-20 linkage modules. Equipped with both sound and light alarms, it ensures prompt notifications. The buttons offer intuitive and easy operation, complementing its rich functionality. With a unique industrial design and appearance patents, it stands out. Plus, it has the capacity to store up to 1050 alarm messages. Main Features： The detector working with gas detector can be used to detect gas in refinery, LPG station, chemical plant, boiler room, painting plant and other places where gas exists.

Model:	DR-ZX100-A
Support channel:	99 unit
Display type:	LCD
Input signal / Output signal:	RS485
Connection mode:	4-wire
Alarm volume:	≥90db
Using environment:	-20°C~50°C (0-95)%RH
Power supply:	220V(195-235VAC/50-60HZ)
Product weight:	6.0Kg
Way to install:	Wall mounting(non-explosion-proof place)
Alarm type:	Sound and light+Indicator light alarm
Product size:	440x290x85mm
Cable specification:	RVVP 4x1.0mm²
Relay output:	4 sets passive NO/COM/NC
Data storage:	1050 pieces
