Gas detecting Controller with Rs485 Signal Output

Gas detecting Controller with Rs485 Signal Output

Accuracy(2):
LEL / PPM / %VOL
Parts - Panel

Measurement Range(1)
0-100%LEL, 0-30%VOL; 0-NPPM

What flowmeter, flow meter, water meter, oil meter, gas detector we do?
gas mass flow controller, remote control gas, gas fireplace control valve, front control gas range, gas control valve furnace, gas control valve furnace, flow controller gas, gas control thermosta, honeywell gas control valve, natural gas alarm, propane gas alarm, gas alarm, explosive gas alarm gas and carbon monoxide alarm, gas detector alarm, kidde gas and carbon monoxide alarm
natural gas alarm, propane gas alarm, gas alarm, explosive gas alarm gas and carbon monoxide alarm, gas detector alarm, kidde gas and carbon monoxide alarm methane gas alarm, alarm gas sensor, first alert explosive gas and carbon monoxide alarm kidde carbon monoxide and explosive gas alarm, kidde co carbon monoxide and gas alarm kidde gas & carbon monoxide alarm, home gas alarm detectors, alarm gas
natural gas detector amazon. natural gas detector menards, natural gas detector plug in, natural gas leak detectorsnatural.gas detector, plug in gas detector, plug in natural gas detector, portable gas detectors portable multi gas detector, propane gas detectors, pt199 gas leak detector, refrigerant gas leak detector

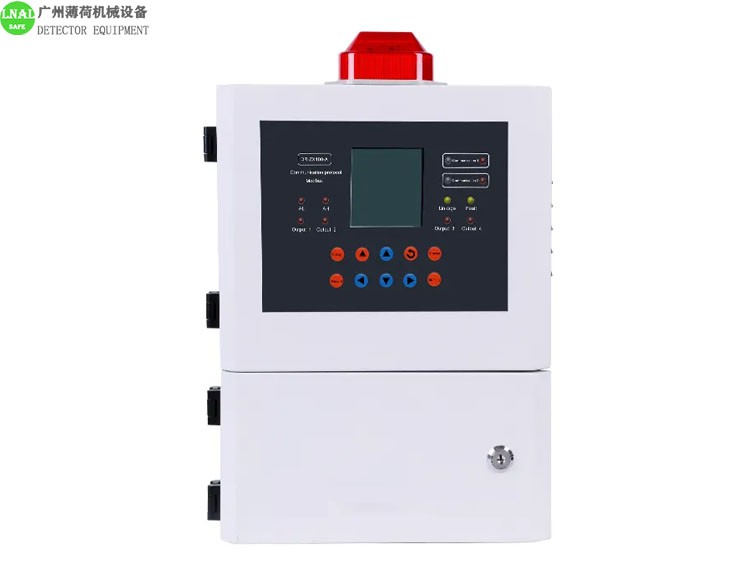

ZX100-A Gas Control Panel 99 Channel Combustible Toxic Gas Controller with Rs485 Signal Output
Type	GAS DETECTOR
Customized support	OEM, ODM, OBM
Place of Origin	Shandong, China
Warranty	1 year
Brand Name	lnal
Model Number	ZX100-A
output signal	RS485
Working temperature	-20~50℃
Using life	2-3 years
Working humidity	0-95%RH
Power supply	220V(195-235VAC/50-60HZ)
Weight	6KG
Display	LED
Alarm Mode	Acousto-optic Alarm
Installation	Wall mounted

Packaging and delivery
Selling Units:	Selling Units:
Single package size:	40X30X30 cm
Single gross weight:	1.000 kg
	5.000 kg

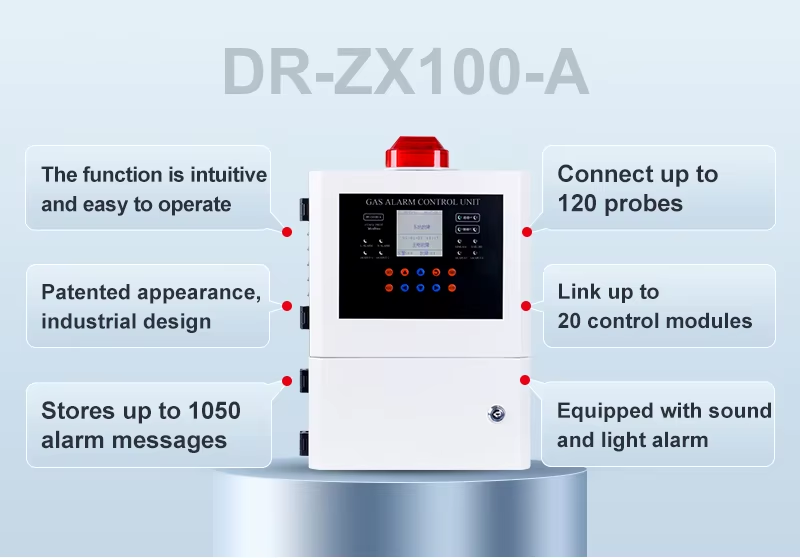

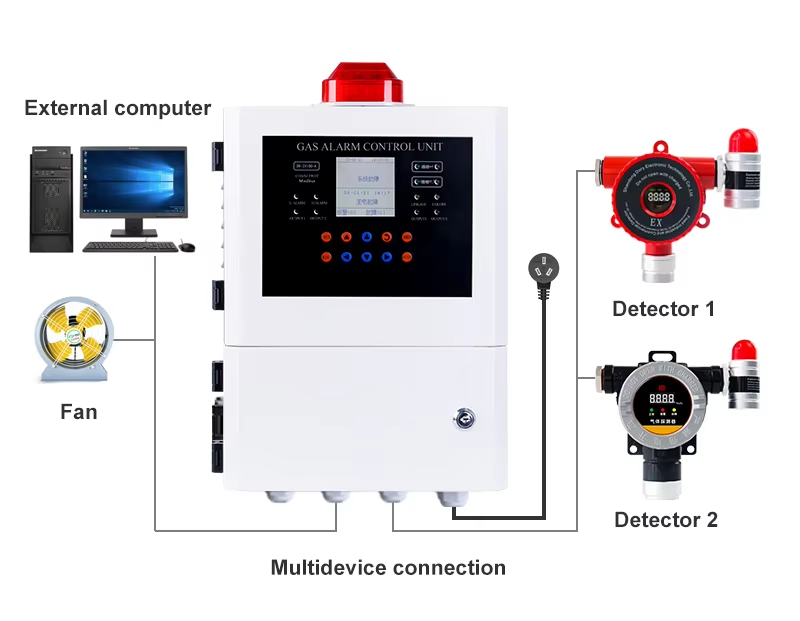

Industrial Gas Control Panel DR-ZX100-A Affordable and Compact, it supports connections for up to 120 probes and 1-20 linkage modules. Equipped with both sound and light alarms, it ensures prompt notifications. The buttons offer intuitive and easy operation, complementing its rich functionality. With a unique industrial design and appearance patents, it stands out. Plus, it has the capacity to store up to 1050 alarm messages. Main Features： The detector working with gas detector can be used to detect gas in refinery, LPG station, chemical plant, boiler room, painting plant and other places where gas exists.

Model:	DR-ZX100-A
Support channel:	99 unit
Display type:	LCD
Input signal / Output signal:	RS485
Connection mode:	4-wire
Alarm volume:	≥90db
Using environment:	-20°C~50°C (0-95)%RH
Power supply:	220V(195-235VAC/50-60HZ)
Product weight:	6.0Kg
Way to install:	Wall mounting(non-explosion-proof place)
Alarm type:	Sound and light+Indicator light alarm
Product size:	440x290x85mm
Cable specification:	RVVP 4x1.0mm²
Relay output:	4 sets passive NO/COM/NC
Data storage:	1050 pieces
