Gas flow meter

Accuracy(1):1%
Material(1):
stainless steel 304

Size(14)
DN15, DN20, DN25, DN32, DN40,DN50
DN65, DN80, DN100, DN125, DN150
DN200, DN250, DN300

What flowmeter, flow meter, water meter, oil meter, gas detector we do?
totalizing flow meter, truzone peak flow meter, weather flow meter, wifi water flow meter, yokogawa flow meter, 2 water flow meter, 3 4 flow meter, argon regulator with flow meter, digital gas flow meter, digital peak flow meterendress+hauser flow meter, flow meter chemical, flow.meter, flow meter water
water meter key wrench, water meter lock key, water meter pressure regulator, water meter price water meter soil, 4 water meter, badger meter water, concrete water meter box home depot flow meter for water hose, flow meter water digital, flow water meter, home depot water meter key houseplant water meter, how much is a water meter, next century water meter, remote water meter
industrial scientific gas detectors, kobalt gas leak detector, lp gas leak detector rv menards natural gas detector, multi gas detector for confined space multi gas detectors, multi-gas detector, natural gas leak detectors home

Pulse Output Variable Area Laboratory Gas Flow Meters Chlorine Gas Flow Meter Calibrator
Type	Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters, Variable Area Petrolum Flowmeters
Place of Origin	Henan, China
Warranty	1 year
Customized support	OEM
Brand Name	LNAL
Model Number	SDLU4-DN200
Product Name	Air gas lpg flowmeter air flow meter sensor digital
Accuracy	1.0% 1.5%
Medium	CNG, LPG, Steam,etc.
Output	4-20mA
Power supply	12VDC~36VDC
Model	SDLU
Ambient temperature	-25 ~ +60℃
Protection grade	IP 65 / IP67 / IP 68(optional)
Material	SS304
Connection	Flanged

Parameters:
Model	LUGB
Measured mediam	Liquid, gas, steam (Saturated steam, superheated steam)
Accuracy class	corrosion-resistant ABS or high-quality aluminum alloy
	Liquid, without compensation: DN15~DN300: class 1.0
	Temperature and pressure compensation type: DN25~DN300: class 1.5
Medium temperature	-40℃~+260℃
Output signal	Voltage frequency pulse (low level ≤ 1V, high level ≥ 6V)
	4-20mA output (load resistance ≤ 30092)
Communication interface	RS485, HART for option
Body material	Stainless steel (other can customize)
Waterproof level	IP65
Work power	Lithium battery 3.6VDC (battery life is more than 2 years), 24VDC ± 5%

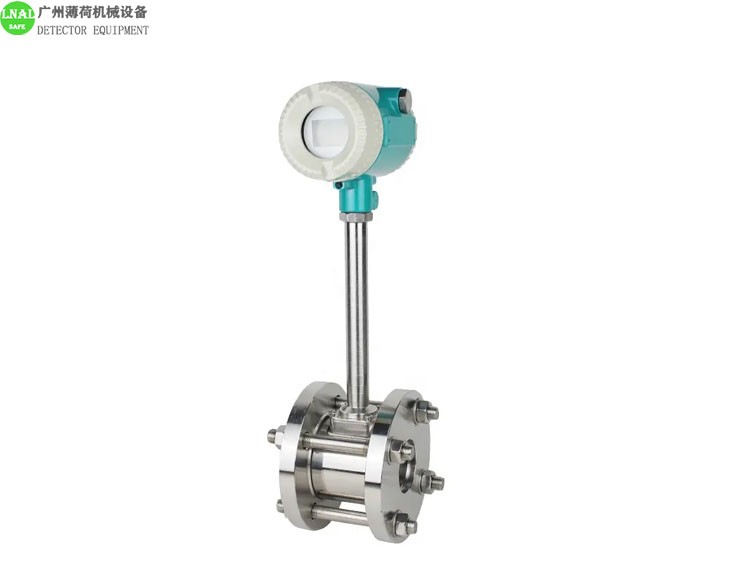

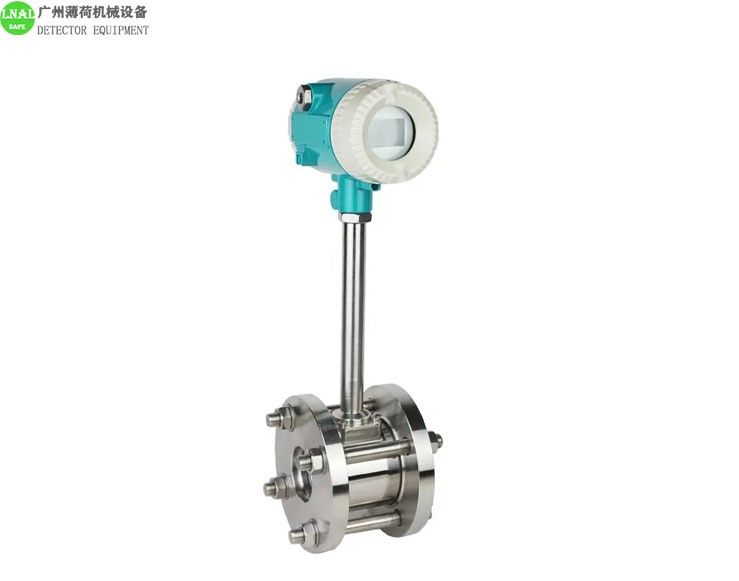

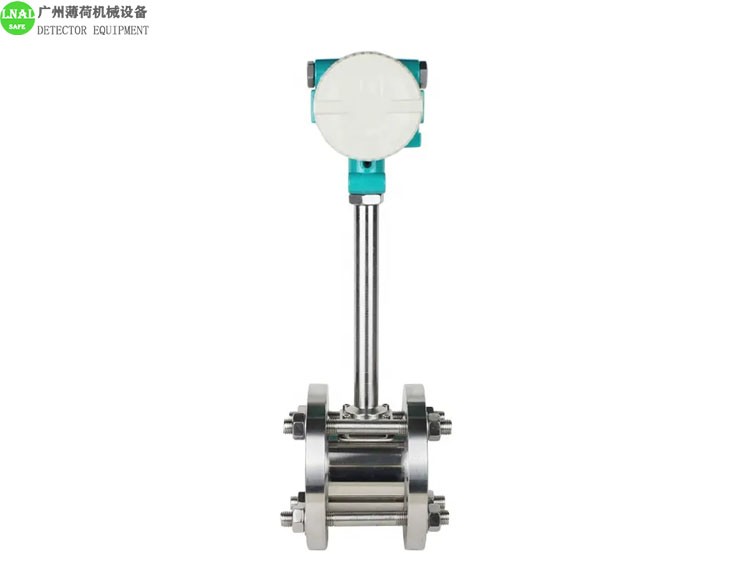

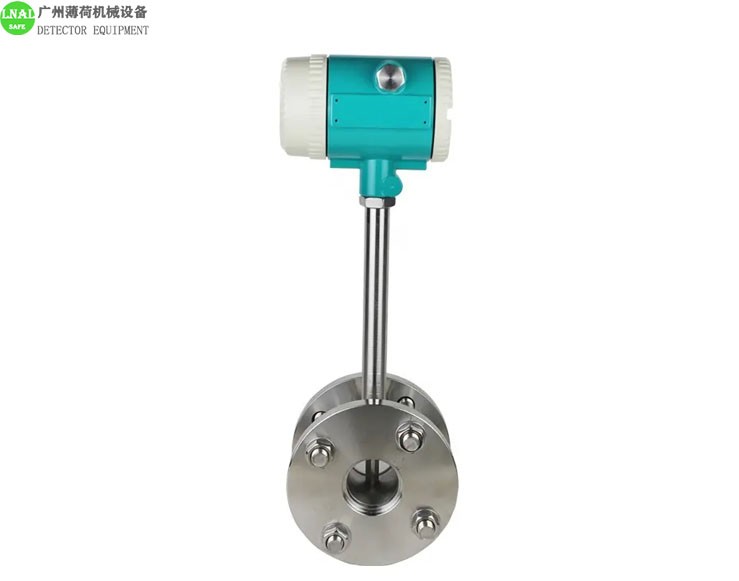

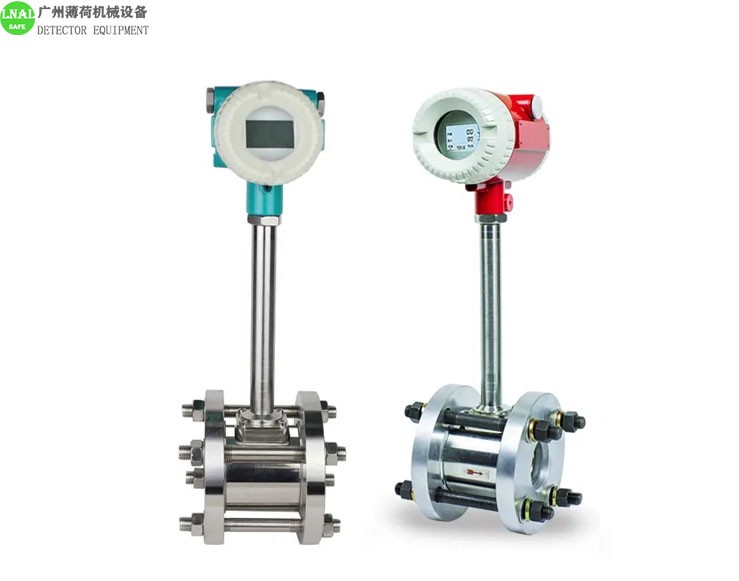

The vortex flowmeter is a volumetric flowmeter that measures the volumetric flow of gases, vapors, or liquids, nominal volume flow, or mass flow produced according to the Karman vortex street principle. It is mainly used for the flow measurement of medium fluids in industrial pipelines, such as gas, liquid, steam and other media.
It is characterized by low pressure loss, large measuring range, high accuracy, and almost no influence of parameters such as fluid density, pressure, temperature, and viscosity when measuring volume flow. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be stable over a long period of time. The vortex flowmeter uses a piezo-electric stress sensor, which has high reliability and can work in the operating temperature range of -20°C to +250°C. There are analog standard signals and digital pulse signals output. It is easy to use with digital systems such as computers. It is a relatively advanced and ideal measuring instrument.
