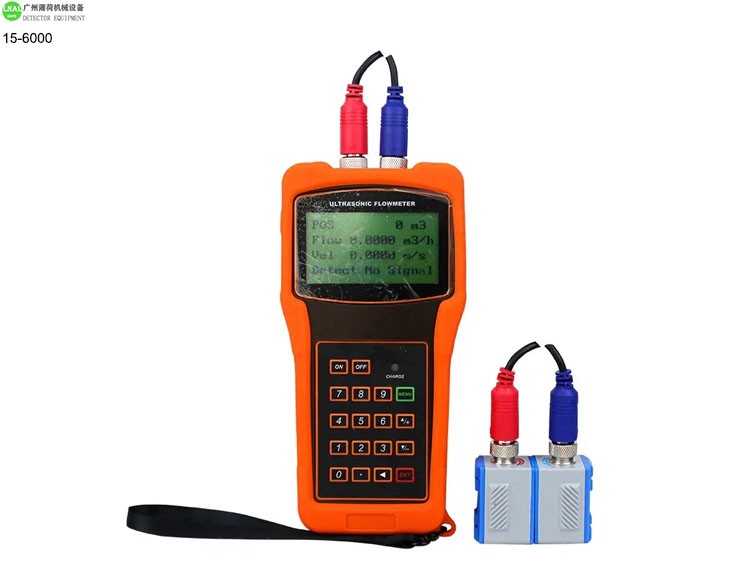

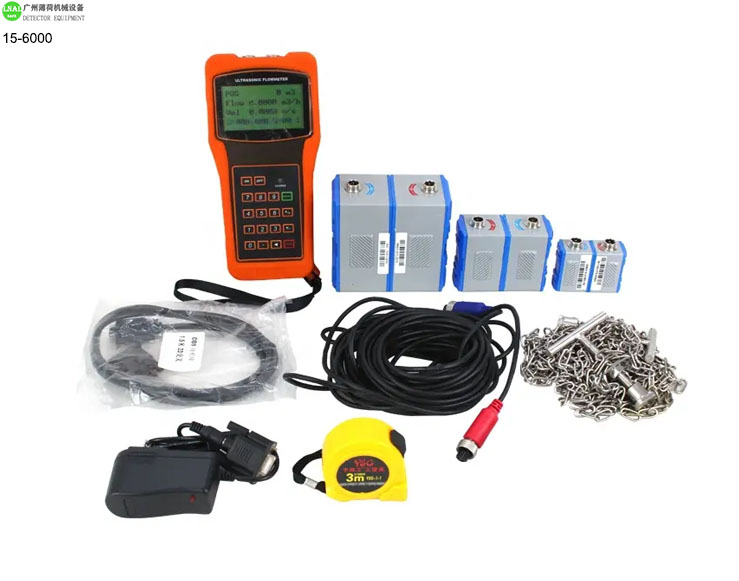

Ultrasonic flow meter clamp on

Model: 15-6000

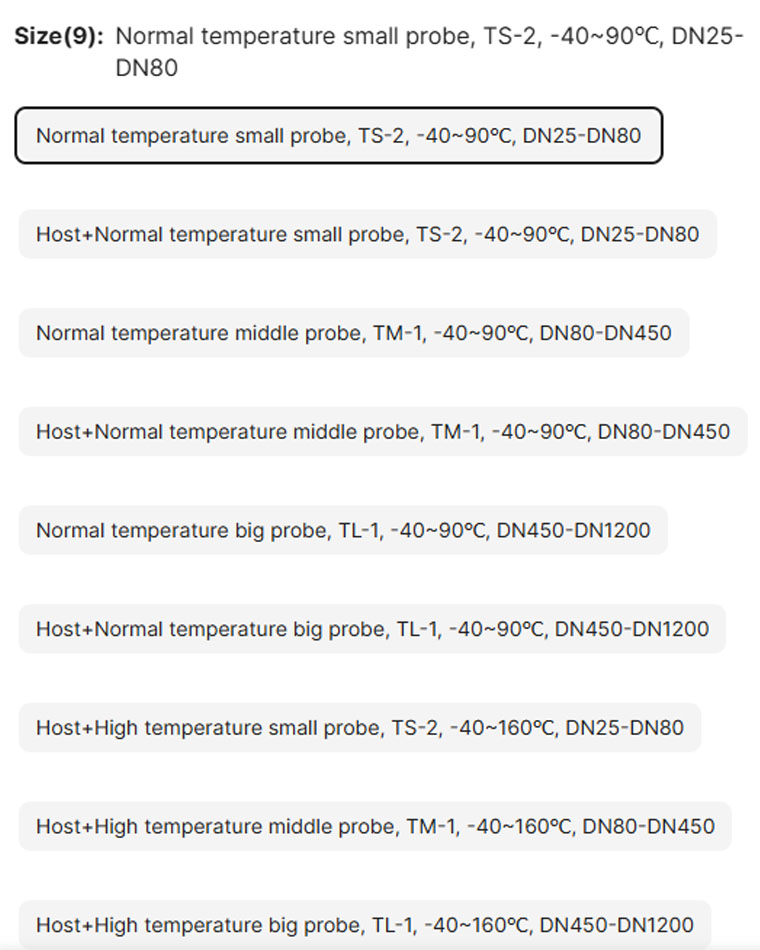

Size(9):
Normal temperature small probe, TS-2, -40~90℃, DN25-DN80

ultrasonic water flow meter, portable ultrasonic flow meter, ultrasonic flow meter clamp on, ultrasonic clamp on flow meter, clamp-on ultrasonic flow meter

Title:
Portable Ultrasonic Water Flow Meter – Accurate and Non-Invasive Flow Measurement

Description:
The ultrasonic water flow meter is a portable, clamp-on device designed for accurate, non-invasive flow measurement. Ideal for industrial, agricultural, and municipal use, it ensures reliable performance across a wide range of pipe sizes and applications.

Product Overview

The ultrasonic water flow meter is a high-performance device engineered for precise flow measurement in various liquid applications. Employing advanced transit-time ultrasonic technology, it offers non-invasive, clamp-on functionality, making installation simple and cost-effective. Its compact and portable design is tailored for professionals who need reliable, on-the-go flow measurement. This device is widely used in industries like water management, HVAC, chemical processing, and agriculture, delivering accurate, repeatable results with minimal maintenance requirements.

Product Attributes and Parameters

Attribute	Specification
Product Name	Ultrasonic Water Flow Meter
Measurement Principle	Transit-time ultrasonic technology
Measurement Range	0–160 ft/s (0–50 m/s)
Accuracy	±1% of the measured value
Repeatability	±0.2%
Pipe Diameter Range	DN15–DN6000 mm

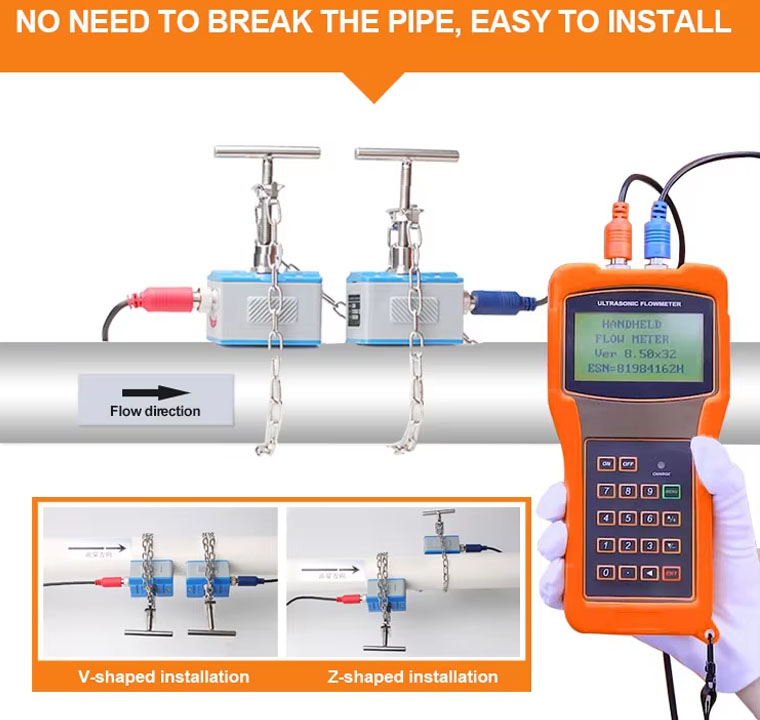

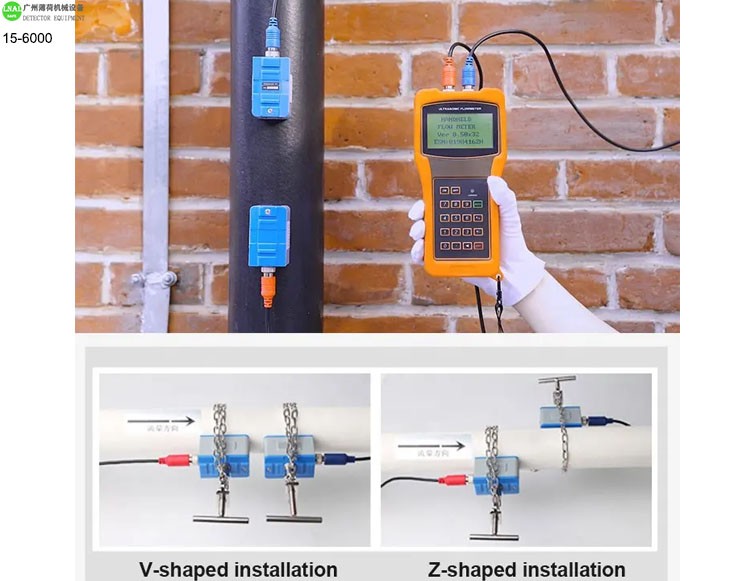

Installation Method	Clamp-on, non-invasive
Power Supply	AC 85–264V or DC 24V
Signal Outputs	4-20 mA, pulse, and RS485 communication (Modbus compatible)
Data Logging	Built-in memory with optional external SD card support

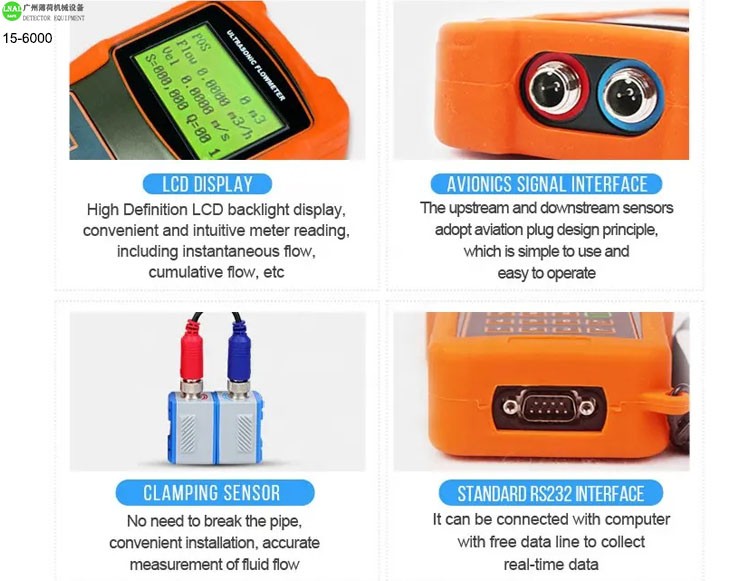

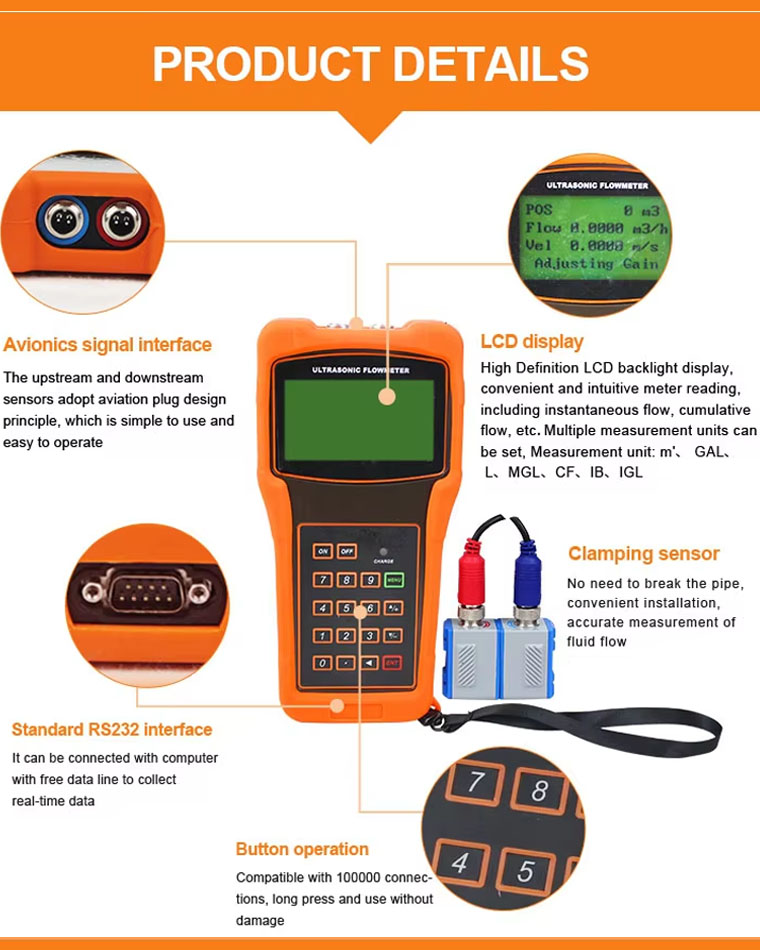

Display	LCD screen for real-time data visualization
Temperature Range	-30°C to +80°C (flow sensor); -10°C to +50°C (main unit)
Protection Grade	IP65-rated for harsh environments
Weight	Approx. 2.5 kg
Applications	Water distribution, industrial processes, HVAC, irrigation, and chemical processing
Compliance	CE certified

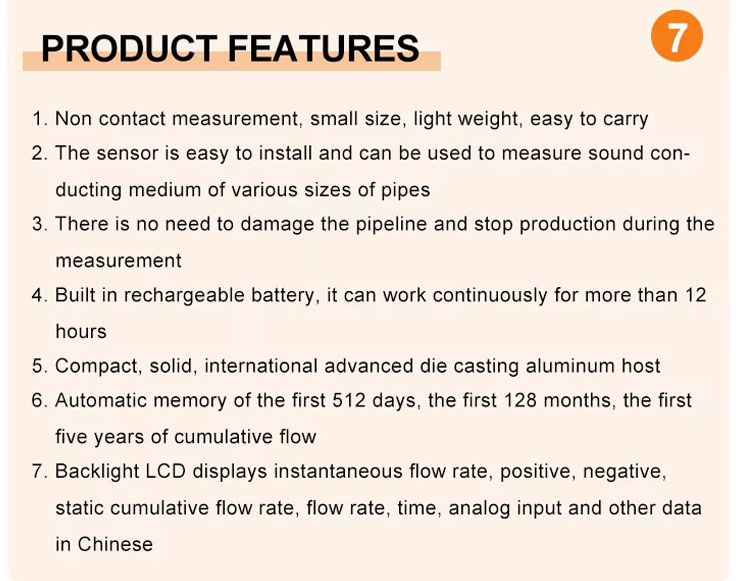

Core Features and Advantages

Features	Advantages
Non-Invasive Clamp-On Design	Enables quick installation without cutting pipes or disrupting system operations.
Wide Pipe Compatibility	Suitable for pipe sizes ranging from DN15 to DN6000 mm, making it versatile for various systems.
High Accuracy and Reliability	Provides consistent and precise measurements with an accuracy of ±1%.
Portable and User-Friendly	Lightweight and compact design with an intuitive interface for fieldwork or site inspections.
Multiple Output Options	4-20 mA, pulse, and RS485 interfaces allow seamless integration with existing systems.
Real-Time Data Display	Large LCD screen delivers instant feedback for enhanced decision-making.
Data Logging Capabilities	Internal storage and optional SD card support enable data recording for analysis and reporting.
Durable and Weather-Resistant	IP65-rated housing ensures reliable performance in demanding industrial environments.
Energy Efficient	Designed to operate with low power consumption, reducing operational costs.

Applications

The ultrasonic water flow meter is versatile and applicable across a wide range of industries and use cases:

Water Distribution Systems:
Ideal for monitoring water flow rates to optimize distribution networks and detect leaks.
HVAC Systems:
Ensures efficient heating and cooling by tracking flow rates in pipes and ducts.
Industrial Processes:
Measures liquid flow in manufacturing, chemical processing, and oil and gas industries.
Irrigation Systems:
Monitors water usage for agricultural applications, improving resource management.
Energy Sector:
Suitable for hydropower plants and energy systems where accurate flow measurement is critical.

Benefits of the Ultrasonic Water Flow Meter

Ease of Use:
The clamp-on design eliminates the need for complex installation, saving time and reducing costs.
Portability:
Lightweight construction allows users to easily carry and deploy the meter across multiple locations.
Broad Compatibility:
Works with a wide range of pipe materials, including metal, PVC, and composite materials.
Reliable Performance in Harsh Conditions:
The rugged, weather-resistant design ensures consistent performance in challenging environments.
Seamless Integration with Systems:
Multiple output options make it compatible with modern IoT platforms and SCADA systems.

Technical Specifications

Parameter	Specification
Flow Velocity Range	0–160 ft/s (0–50 m/s)
Pipe Size Compatibility	DN15 to DN6000 mm
Signal Output	4-20 mA, Pulse, RS485 (Modbus Protocol)
Measurement Accuracy	±1%
Operating Temperature	-30°C to +80°C for sensors; -10°C to +50°C for the main unit
Power Supply	AC 85–264V or DC 24V
Protection Class	IP65
Data Storage	Built-in memory; optional SD card support for extended storage
Weight	Approx. 2.5 kg

Why Choose the Ultrasonic Water Flow Meter?

Precision Measurement Without System Interruption:
This flow meter’s non-invasive design allows you to obtain accurate readings without halting operations or altering piping infrastructure.
Portable Solution for Field Engineers:
Lightweight and easy to transport, the device is perfect for field professionals managing multiple sites.
Environmentally Friendly and Energy Efficient:
With low power consumption, the ultrasonic water flow meter minimizes environmental impact and operational costs.
Comprehensive Data Management:
The built-in memory and optional data storage provide robust tools for monitoring and improving system efficiency.

By choosing the ultrasonic water flow meter, businesses and professionals gain access to a reliable, cost-effective, and versatile tool that simplifies liquid flow measurement, enhances operational efficiency, and provides insights into system performance.
