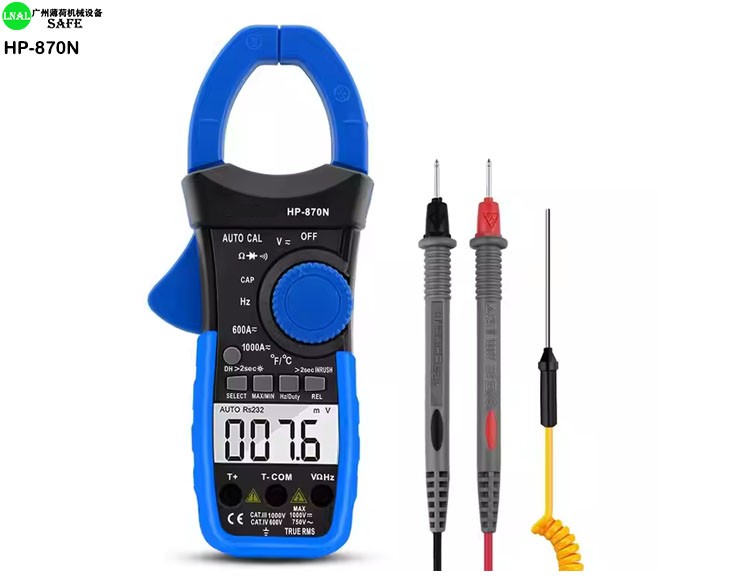

Introducing the HP-870N Digital Ammeter Amperimetro, a versatile and precise instrument designed for measuring electrical parameters in various applications. This auto-ranging digital clamp meter offers a comprehensive set of features, making it an essential tool for professionals and enthusiasts in the electrical and electronics fields. Multimeter nearby

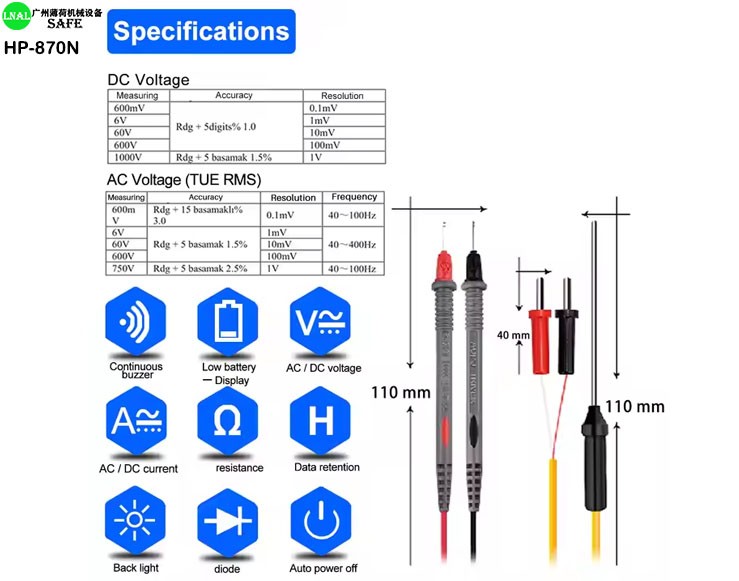

Product Specifications

Attribute	Details
Display Type	Digital Only
Display Count	6000 counts
Measuring Current Range	200A/1000A (AC/DC)
Measuring Voltage Range	600mV/6V/60V/600V/750V/1000V (AC/DC)
Measuring Resistance Range	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Measuring Capacitance Range	9.999nF–99.99mF
Temperature Measurement Range	-20°C to 1000°C
Frequency Measurement Range	9.999Hz–9.999MHz
Jaw Opening Size	Measures conductors up to 45mm in diameter without interrupting the circuit
Dimensions	225 mm × 97 mm × 40 mm
Weight	450 grams
Operating Temperature	-10°C to 40°C
Storage Temperature	-20°C to 60°C
Power Supply	9V battery
Safety Rating	CAT III 1000V, CAT IV 600V

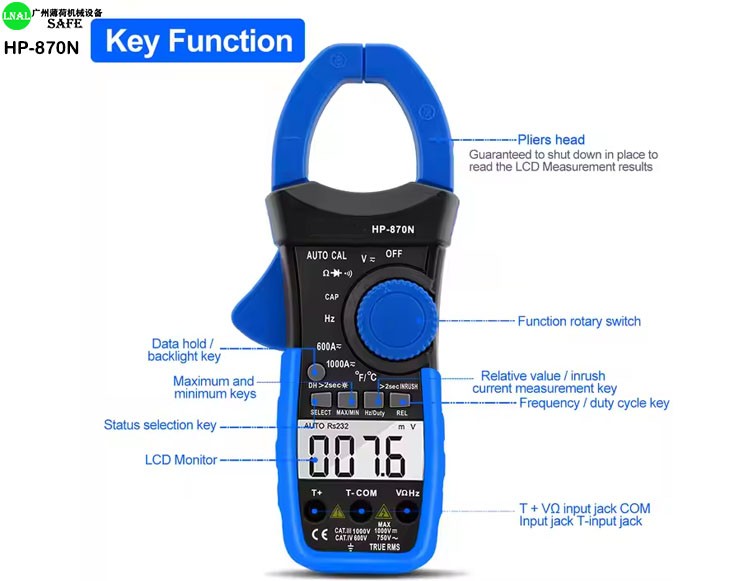

Key Features and Benefits

Feature	Benefit
Auto-Ranging Capability	Automatically selects the appropriate measurement range, simplifying operation and reducing the chance of errors.
True RMS Measurement	Provides accurate readings for both sinusoidal and non-sinusoidal AC signals, essential for precise measurements in complex electrical environments.
Dual Display	Allows simultaneous viewing of two different parameters, enhancing efficiency during diagnostics.
Data Hold Function	Enables users to freeze the current reading on the display for convenient data recording.
Max/Min Recording	Captures the maximum and minimum values during a measurement session, useful for analyzing fluctuations.
Backlit LCD	Ensures clear visibility of readings in low-light conditions, improving usability in diverse environments.
Inrush Current Measurement	Accurately measures the initial surge current, beneficial for assessing motor startups and other inductive loads.
Relative Value Measurement	Allows comparison between measured values and a reference value, aiding in identifying deviations.
Overload Protection	Equipped with full-range overcurrent protection, enhancing safety and durability.
Low Power Consumption	Designed for energy efficiency, extending battery life and reducing operational costs.
Durable Construction	Built with high-quality materials, offering stability and resistance to drops, suitable for demanding work conditions.

Applications

The HP-870N Digital Ammeter Amperimetro is suitable for a wide range of applications, including:

Electrical Installations: Ideal for measuring current, voltage, and resistance in residential, commercial, and industrial electrical systems, ensuring compliance with safety standards.
Equipment Maintenance: Essential for troubleshooting and maintaining electrical equipment, identifying faults, and verifying proper operation.
Automotive Diagnostics: Useful for testing automotive electrical circuits, including battery health, alternator performance, and detecting parasitic drains.
HVAC Systems: Valuable for assessing the electrical components of heating, ventilation, and air conditioning systems, ensuring efficient and safe operation.
Educational Purposes: Serves as a practical tool for students and educators in electrical engineering and related fields, facilitating hands-on learning experiences.

How to Use the HP-870N Digital Ammeter Amperimetro

Power On: Insert a 9V battery and press the power button to turn on the device.
Select Measurement Mode: Use the function selector dial to choose the desired measurement parameter (e.g., AC/DC current, voltage, resistance).
Auto-Ranging: The device will automatically select the appropriate range for the chosen measurement.
Clamp Measurement: For current measurements, open the jaw and enclose the conductor under test, ensuring it is centered within the clamp for accurate readings.
Probe Measurement: For voltage, resistance, capacitance, and other measurements, connect the test leads to the appropriate input terminals and contact the test points.
Read Measurements: Observe the readings on the backlit LCD. Utilize the data hold function if needed to freeze the displayed value.
Inrush Current Measurement: Select the inrush current mode to measure the initial surge current of inductive loads.
Power Off: After use, turn off the device to conserve battery life.

Maintenance and Care

Regular Calibration: Periodically calibrate the device to maintain measurement accuracy.
Battery Replacement: Replace the 9V battery when the low battery indicator appears to ensure uninterrupted operation.
Proper Storage: Store the ammeter in a cool, dry place when not in use to protect it from environmental damage.
Cleaning: Clean the device with a soft, dry cloth. Avoid using abrasive cleaners or solvents that may damage the surface or internal components.
