Portable Oscilloscope: The Essential Tool for Precision Electronics Testing

The portable oscilloscope is a critical instrument for engineers, technicians, and hobbyists who require accurate and reliable measurement of electrical signals. With its compact design, advanced features, and user-friendly interface, this device is perfect for on-the-go testing and diagnostics. The Portable Oscilloscope combines functionality with convenience, making it an invaluable tool in various applications, including electronics development, automotive diagnostics, and educational settings.

Product Overview

What is a Portable Oscilloscope?

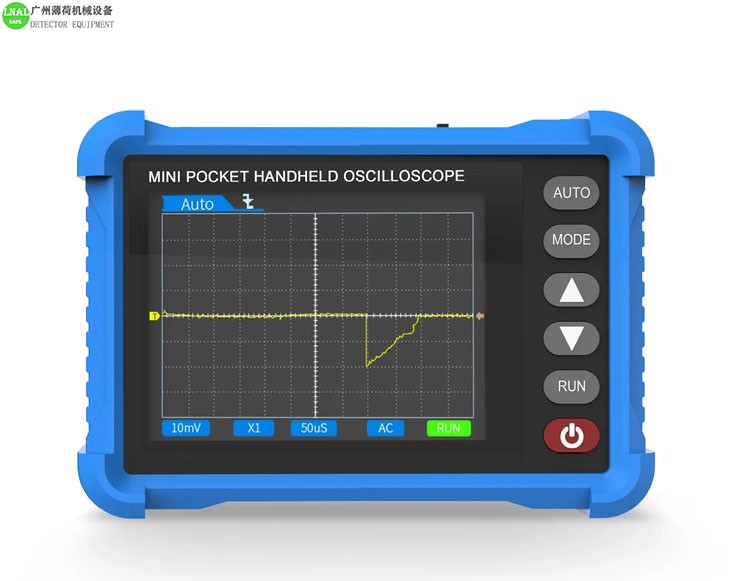

A portable oscilloscope is a compact device that captures and displays electrical signals in real-time. It allows users to visualize voltage fluctuations over time, enabling them to analyze waveforms and diagnose issues in electronic circuits. This particular model features a bandwidth of 250 kHz and a high-definition 2.8-inch LCD screen, making it easy to view and interpret data during testing.

Key Features

1. Compact and Lightweight Design:

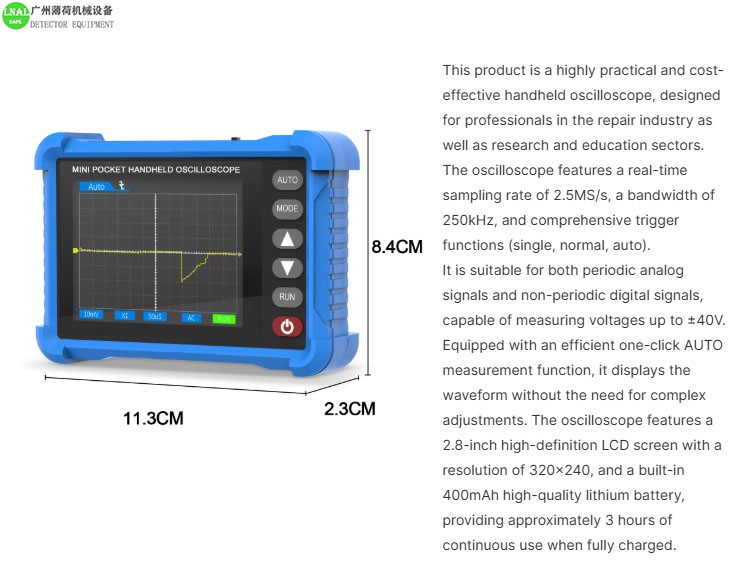

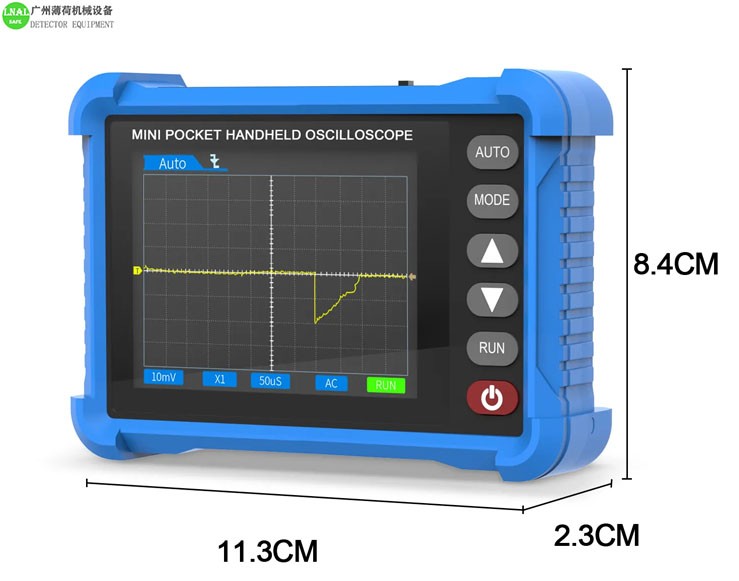

• Measuring 103 mm x 73 mm x 25 mm and weighing only 200 grams, this portable oscilloscope is easy to carry, making it ideal for fieldwork and mobile applications.

2. High Bandwidth:

• With a bandwidth of 250 kHz, this oscilloscope can accurately capture a variety of signals, making it suitable for many testing scenarios.

3. Sample Rate:

• The oscilloscope features a sample rate of 2.5 MS/s, allowing for detailed waveform analysis and accurate signal representation.

4. User-Friendly Display:

• The 2.8-inch LCD screen with a resolution of 320 x 240 pixels provides clear and detailed visualizations of waveforms, making it easy for users to interpret data.

5. Versatile Trigger Modes:

• Users can select between Auto, Normal, and Single trigger modes, enabling them to capture specific events within their signals effectively.

6. Time Base Range:

• The oscilloscope supports a time base range from 10 µs/Div to 50 s/Div, accommodating a wide variety of signal frequencies.

7. Calibration Features:

• Includes a calibration square wave generator with a frequency of 1 kHz and a duty cycle of 50%, ensuring accurate measurements.

8. Rechargeable Lithium Battery:

• Powered by a 400 mAh lithium battery, this portable oscilloscope offers extended usage without the need for constant recharging.

Technical Specifications

Here’s a detailed table presenting the product's attributes and specifications:

Benefits of Using a Portable Oscilloscope

1. Enhanced Portability:

• The compact design allows professionals to carry the oscilloscope easily, making it perfect for field tests and on-site diagnostics.

2. Versatile Measurement Capabilities:

• This portable oscilloscope is capable of measuring various electrical signals, making it suitable for a wide range of applications, from troubleshooting circuits to analyzing waveforms in scientific research.

3. Cost-Effective Solution:

• Combining multiple measurement functions into one device saves money compared to purchasing separate instruments for different tasks.

4. User-Friendly Interface:

• The intuitive controls and clear display make it accessible for users of all experience levels, from beginners to seasoned professionals.

5. Accurate and Reliable Measurements:

• With its high bandwidth and sample rate, this oscilloscope provides precise and reliable data, essential for effective troubleshooting and analysis.

6. Battery-Powered Convenience:

• The built-in rechargeable battery allows for extended use without the need for an external power source, enabling users to perform tests anywhere.

Conclusion

The portable oscilloscope is an essential tool for anyone working in electronics. Its compact size, high-performance features, and user-friendly design make it an ideal choice for both professionals and enthusiasts. Whether for fieldwork, educational purposes, or laboratory testing, this oscilloscope delivers the accuracy and reliability needed for effective signal analysis.

Optimize Your Testing Process

Investing in a portable oscilloscope can significantly enhance your ability to test and analyze electronic circuits. With its advanced features and easy portability, this device is designed to help you work more efficiently and effectively.

Call to Action

Enhance your electronics testing capabilities today by choosing the Portable Oscilloscope. For more information or to place an order, contact us now. Don’t miss out on the opportunity to elevate your work with this essential measurement tool!
