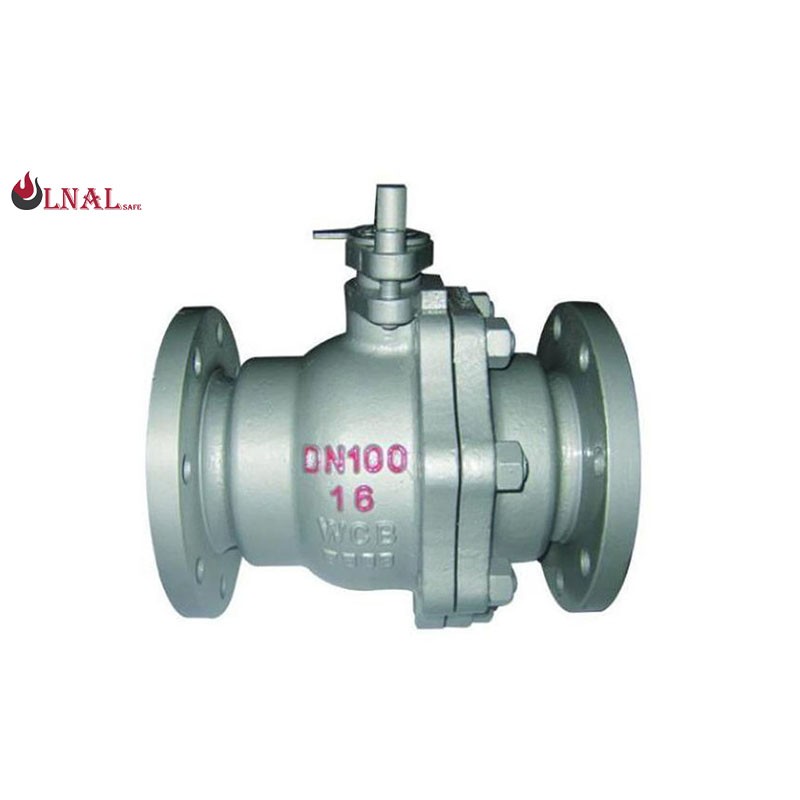

Full Bore Manual Ball Valve, WCB Body, Flange Ends, PN10/16, for Water, Oil, and Gas

Full Bore Manual Ball Valve, WCB Body, Flange Ends, PN10/16, for Water, Oil, and Gas

Our industrial ball valve is engineered for superior shut-off and flow control in a wide range of applications, including water, oil, gas, and steam pipelines. Manufactured with a durable WCB valve body and PTFE sealing material, this full-port ball valve ensures minimal pressure drop and smooth operation. It meets international standards such as ISO, CE, and ANSI/ASME, making it a reliable choice for industrial and commercial systems. With manual lever operation and a wide temperature range (-20°C to 120°C), this valve is both versatile and easy to maintain.

Product Description:
Our industrial ball valve is engineered for superior shut-off and flow control in a wide range of applications, including water, oil, gas, and steam pipelines. Manufactured with a durable WCB valve body and PTFE sealing material, this full-port ball valve ensures minimal pressure drop and smooth operation. It meets international standards such as ISO, CE, and ANSI/ASME, making it a reliable choice for industrial and commercial systems. With manual lever operation and a wide temperature range (-20°C to 120°C), this valve is both versatile and easy to maintain.

Features:

Full bore design for minimal flow resistance
WCB valve body for strength and corrosion resistance
PTFE soft seats for tight sealing and leak-free performance
Flange connection (ANSI/ASME standards) for easy installation
Manual lever operation for quick 90° open/close action
Suitable for water, oil, gas, and steam media
ISO 9001, CE certified for quality assurance

Advantages:

Advantage	Description
Low Fluid Resistance	Full bore design ensures smooth flow with minimal pressure loss.
Easy Operation	Quick 90° turn offers fast opening and closing, ideal for frequent use.
Reliable Sealing	PTFE soft seal provides excellent leak-proof performance.
Durable Construction	WCB body and stainless steel stem ensure long service life.
Wide Applicability	Compatible with water, gas, oil, steam, and other industrial media.
Easy Maintenance	Simple structure allows for easy disassembly and seal replacement.

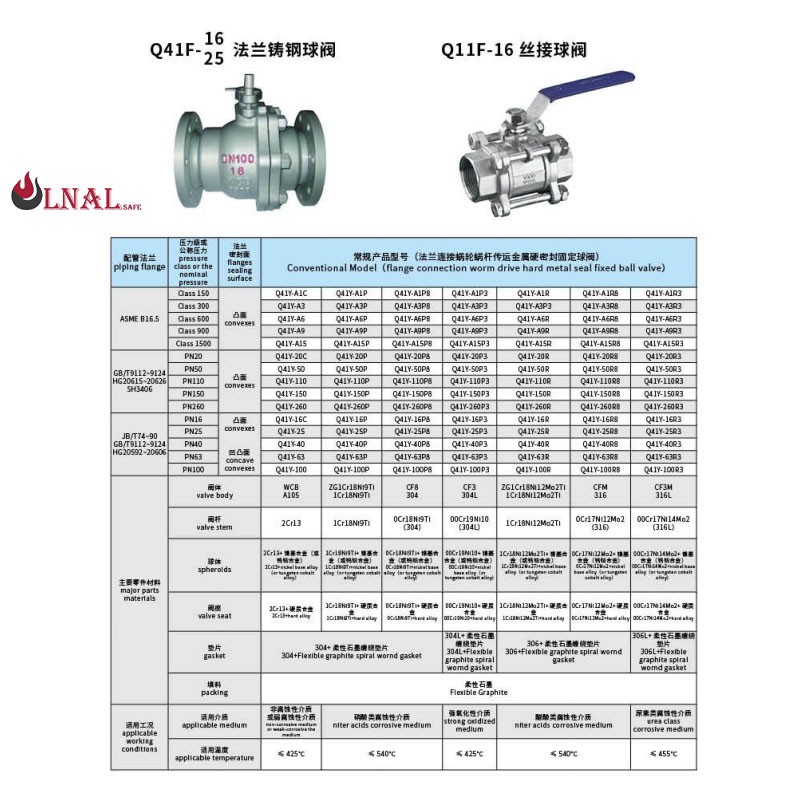

Specifications:

Attribute	Value(s)
Size Range	DN20 – DN600 (¾" to 24")
Pressure Rating	PN10/PN16, Class150/300/600
Connection Type	Flange Ends (ANSI/ASME compliant)
Valve Body Material	WCB
Ball Material	SS304
Stem Material	SS420, 2Cr13, SS304, SS316
Seat Material	PTFE
Sealing Type	Soft Seal
Operation Type	Manual Lever
Media	Water, Oil, Gas, Steam (WOG)
Temperature Range	-20°C to 120°C
Certifications	CE, ISO9001, ISO14001, ISO45001
Standards	GB, BS, ANSI, ASME, API600
