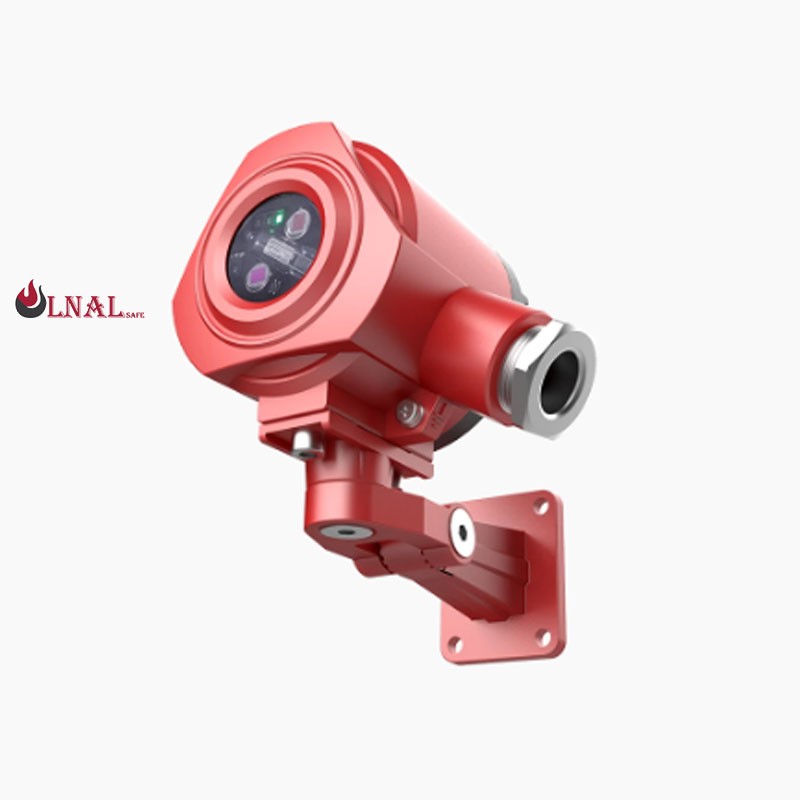

Our Triple-Band UV/IR Flame Detector integrates advanced infrared and ultraviolet sensing technologies to deliver reliable fire detection in high-risk industrial settings. Engineered with a proprietary algorithm and industrial-grade EMC protection, this detector effectively distinguishes real flames from common interference sources. The compact housing features corrosion-resistant coating and modular internal design for easy maintenance. With wide 120° coverage and fast response time, it meets GB12791, GB15631, and GB3836 standards, ensuring optimal performance in oil, gas, chemical, and other explosion-prone environments.
Features:
Triple-band IR + UV sensor technology
Advanced flame recognition algorithm
Industrial EMC anti-interference design
Corrosion-resistant coated aluminum housing
Self-diagnosis with fault alarm output
Modular design for easy maintenance
Wide 120° viewing angle
Compact and lightweight construction
Advantages
Advantage | Description |
---|---|
High Accuracy | Multi-spectral detection reduces false alarms from non-flame sources |
Fast Response | ≤10s response time for various fuel types |
Wide Coverage | 120° viewing angle for large area monitoring |
Reliable Performance | Advanced algorithm ensures accurate flame identification |
Durable Construction | Special coating protects against corrosion |
Easy Maintenance | Modular design enables quick servicing |
Safety Certified | Meets GB12791, GB15631, and GB3836 standards |
Specifications
Parameter | KF715/IR3 | KF715/UV | KF715/UVIR2 | KF716/UVIR2 |
---|---|---|---|---|
Spectral Range | IR3.8-5.0um | UV185-260nm | IR3.8-5.0um + UV185-260nm | IR3.8-5.0um + UV185-260nm |
Detection Distance (0.3×0.3m fire) | ||||
- Heptane | 40m | 35m | 40m | 40m |
- Gasoline | 35m | 30m | 35m | 35m |
- Diesel | 35m | 30m | 35m | 35m |
- Kerosene | 35m | 30m | 35m | 35m |
- Alcohol | 30m | 30m | 30m | 30m |
- Paper | 30m | 25m | 30m | 30m |
Response Time | ≤10s | ≤10s | ≤10s | ≤10s |
Viewing Angle | 90° | 120° | 120° | 120° |
Protection Rating | IP66/IP67 | IP66/IP67 | IP66/IP67 | IP66/IP67 |
Explosion Proof | Exd IIC T6 Gb, Ex tD A21 IP66/IP67 T80°C |
triple-band UV IR flame detector
industrial flame detector, explosion proof UV IR detector, hazardous area flame sensor
multi-spectrum flame detector, combined UV IR sensor, industrial fire detector
