Stainless Steel 3 Way Ball Valve, Flange Ends, Manual Lever Operated, for Flow Diversion and Mixing

Stainless Steel 3 Way Ball Valve, Flange Ends, Manual Lever Operated, for Flow Diversion and Mixing

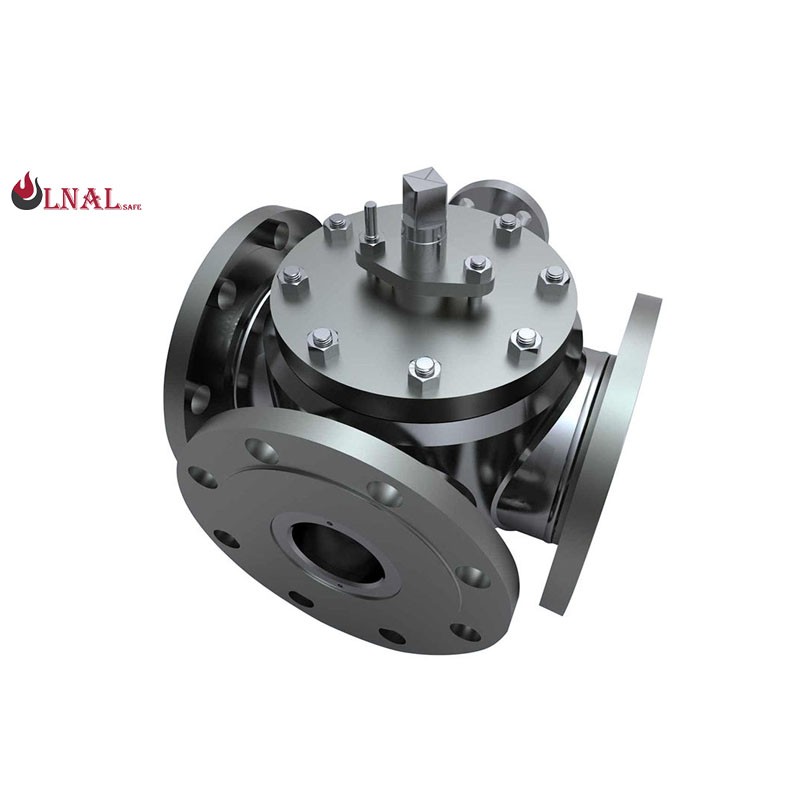

Our 3 way ball valve is expertly engineered for sophisticated flow control applications that require diversion, mixing, or distribution of media. Crafted from high-grade stainless steel (SS304/SS316), this valve offers superior corrosion resistance and exceptional durability. It is available in both L-port and T-port configurations, providing flexible flow patterns to suit various system requirements. The flange-end connection guarantees a secure installation and leak-free performance. Ideal for use in water, oil, gas, and chemical processing industries, this manually operated ball valve ensures reliable performance with a simple 90-degree turn, making it a versatile solution for complex piping systems.

Advantages:

Advantage	Description
Versatile Flow Control	L-port and T-port designs support multiple flow patterns for complex system needs.
Superior Corrosion Resistance	Stainless steel construction ensures long service life even in harsh conditions.
Effortless Operation	Quick 90° lever operation allows for efficient and easy flow management.
Leak-Free Performance	High-quality soft seals (NBR/PTFE) provide excellent shut-off capabilities.
Reduced Flow Resistance	Full bore design lowers flow restriction and conserves energy.
Robust and Durable	Sturdy stainless steel body withstands high pressure and temperature variations.
Broad Application Scope	Suitable for a wide range of media including water, oil, gas, and chemicals.

Specifications:

Attribute	Value(s)
Size Range	DN15 – DN200
Body Material	Stainless Steel (SS304, SS316)
Ball Material	Stainless Steel
Connection Type	Flange Ends
Port Configuration	L-Port, T-Port
Seal Material	NBR, PTFE (optional)
Operation Type	Manual Lever
Media	Water, Oil, Gas, Chemicals
Temperature Range	-20°C to 180°C
Pressure Rating	PN16/PN25, Class150
Standards	ISO, ANSI, ASME
Warranty	2 Years
